Controls And Solenoid: 3.3L/3.8L

Fig 1: Locating Generator And Oxygen Sensor
G04763082Courtesy of CHRYSLER


Fig 1: Locating Fuel Injectors
G04762133Courtesy of CHRYSLER

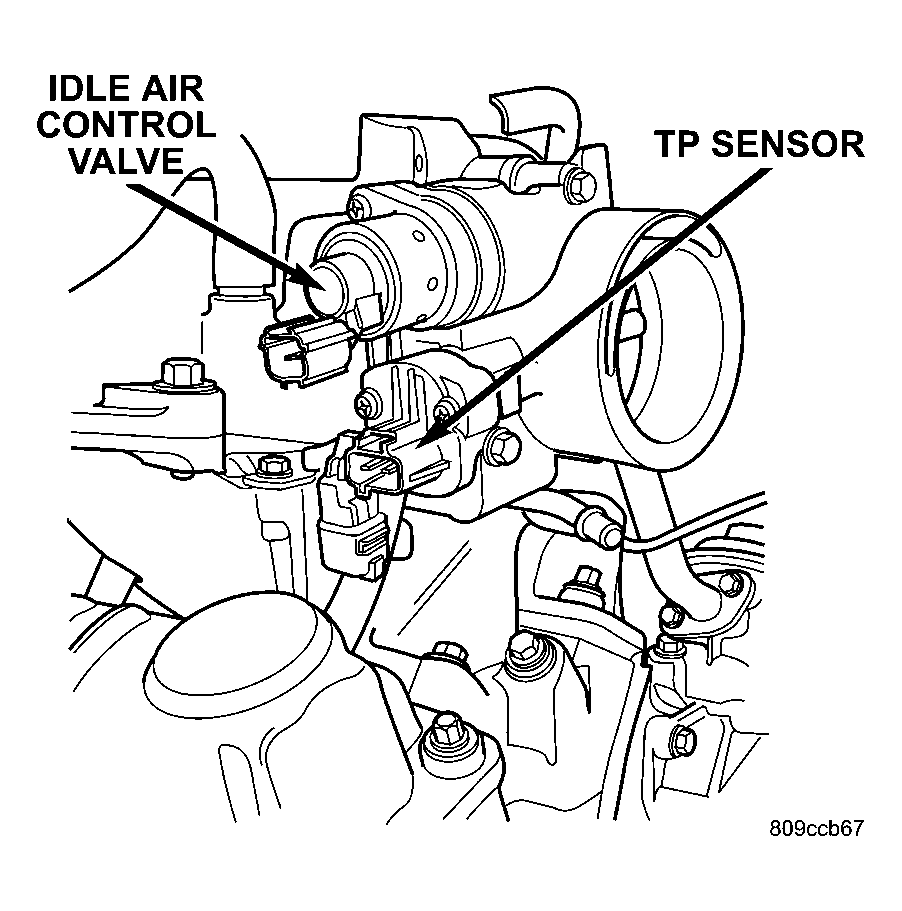

Fig 1: Locating TP Sensor And Idle Air Control Valve
G04549203Courtesy of CHRYSLER


Fig 1: Locating Ignition Coil And ECT Sensor
G04763088Courtesy of CHRYSLER
Fig 2: Locating Speed Control Servo
G05552122Courtesy of CHRYSLER
