Sensor-Inlet Temperature - 3.5L

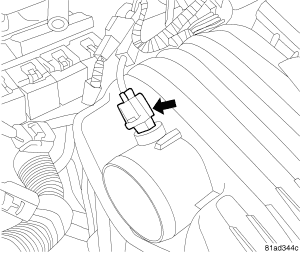

Fig 1: Identifying Inlet Temperature Sensor Location
GC0060565Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Disconnect electrical connector from sensor.
  3. Remove sensor.
