Timing Chain Cover

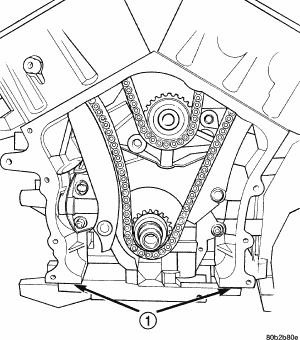

Fig 1: Identifying Timing Chain Cover RTV Sealing Points
GC0060217Courtesy of CHRYSLER LLC
1 - PLACE A 1/8 INCH BEAD OF SEALER AT PARTING LINE
  1. Inspect and clean timing chain cover sealing surfaces.
  2. Before installing timing cover gasket apply a 1/8 inch bead of Mopar® Engine RTV GEN II to the parting lines (1) between the oil pan and cylinder block.

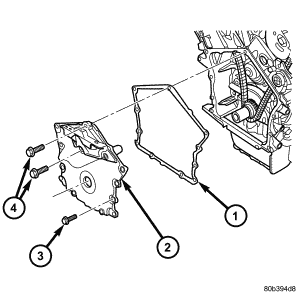

    Fig 2: View Of Timing Chain Cover, Bolts & Gasket
    GC0060218Courtesy of CHRYSLER LLC
    1 - GASKET
    2 - TIMING CHAIN COVER
    3 - BOLT - M6
    4 - BOLT - M10
  3. Install timing cover (2) and gasket (1). Tighten M10 cover bolts to 54 N.m (40 ft. lbs.) and M6 bolts to 12 N.m (105 in. lbs.).
  4. Install front crankshaft oil seal using Special Tool 6780-2 sleeve and 6780-1 installer.
  5. Install right engine mount. See INSTALLATION .
  6. Install screws attaching heater supply tube to right front frame rail area.

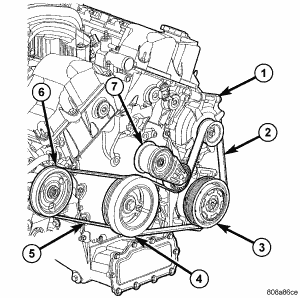

    Fig 3: Accessory Drive Belt System - 2.7L
    GC0060219Courtesy of CHRYSLER LLC
    1 - GENERATOR
    2 - BELT
  7. Connect heater hose to supply tube at right front frame rail area.
  8. Install AC/Generator belt tensioner/bracket assembly.
  9. Install crankshaft vibration damper. See INSTALLATION .
  10. Install accessory drive belts (2). Refer to INSTALLATION .

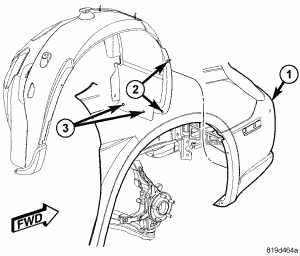

    Fig 4: Identifying Front Splash Shields
    GC0060220Courtesy of CHRYSLER LLC
  11. Install belt splash shield and right front wheel.
  12. Install coolant pressure container.
  13. Fill cooling system.
  14. Connect negative battery cable.
