Engine Assembly

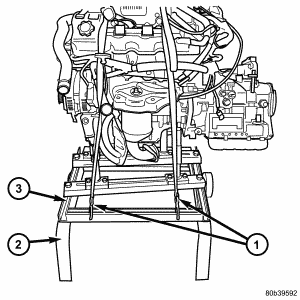

Fig 1: Identifying Engine Removal Cradle
GC0060131Courtesy of CHRYSLER LLC
1 - SAFETY STRAPS
2 - SPECIAL TOOL 6135
3 - SPECIAL TOOL 6710
  1. Position engine/transaxle assembly under vehicle and slowly lower vehicle in short length spans. Inspect at each interval for potential engine or transaxle contact to vehicle components. Move the cradle/dolly fixture (2) as necessary to allow for installation clearance.
  2. Continue lowering vehicle until right side engine mount and left side transaxle mount align to their mounting locations. Install mounting bolts and torque to 61 N.m (45 ft. lbs.).
  3. Remove safety straps from engine/transaxle assembly. Slowly raise vehicle enough to remove the engine dolly and cradle.

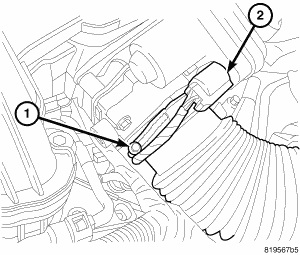

    Fig 2: Identifying Inlet Hose & Electrical Connection
    GC0060132Courtesy of CHRYSLER LLC
  4. Connect brake booster and vapor purge vacuum hoses.
  5. Connect fuel line.
  6. Connect ETC wiring to throttle body (2).
    Fig 3: View Of Coolant Recovery Container - Pressure System
    GC0058752Courtesy of CHRYSLER LLC
  7. Connect ground strap to right shock tower.
  8. Connect heater hose to coolant outlet connector.
  9. Connect coolant recovery container hose to radiator (3).

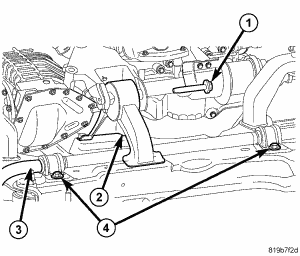

    Fig 4: Identifying Rear Torque Mount
    GC0060133Courtesy of CHRYSLER LLC
  10. Connect ground cable to left side transaxle mount bracket.
  11. Connect positive cable to battery and PDC.
  12. Install rear engine mount and transaxle bracket (2).

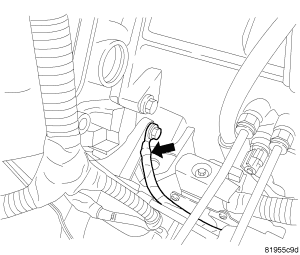

    Fig 5: Identifying Ground Cable
    GC0060134Courtesy of CHRYSLER LLC
  13. Automatic Transmission Equipped Vehicles:
    1. Install torque converter bolts.
    2. Install torque converter housing cover.
  14. Reattach all ground straps to engine.
    Fig 6: Identifying Ground Cable
    GC0060134Courtesy of CHRYSLER LLC
  15. Manual Transmission Equipped Vehicles:
    1. Install modular clutch assembly-to-drive plate bolts.
    2. Install clutch/drive plate inspection cover.
    3. Connect clutch hydraulic circuit quick connect fitting.
  16. Reattach all ground straps to engine.

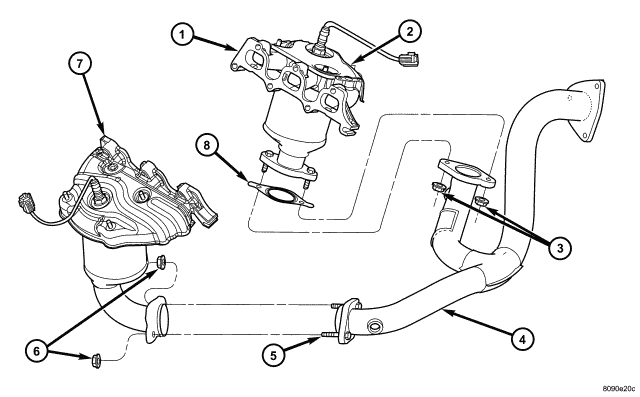

    Fig 7: View Of Cross-Under Pipe & Attachments
    GC0060135Courtesy of CHRYSLER LLC
    1 - EXHAUST MANIFOLD - REAR
    2 - CATALYTIC CONVERTER ATTACHING STUD
    3 - NUTS - PIPE-TO-REAR CONVERTER
    4 - CROSS-UNDER PIPE
    5 - BOLT - PIPE-TO-FRONT CONVERTER
    6 - NUT - PIPE-TO-FRONT CONVERTER
    7 - EXHAUST MANIFOLD - FRONT
    8 - GASKET - PIPE-TO-CONVERTER
  17. Install exhaust cross-under pipe (4). Refer to INSTALLATION .

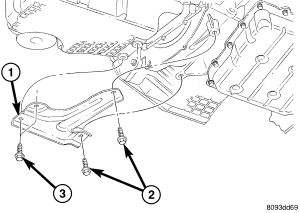

    Fig 8: View Of Structural Collar (Note: Cross-Under Pipe Not Shown)
    GC0060136Courtesy of CHRYSLER LLC
    1 - STRUCTURAL COLLAR
    2 - BOLT (2) - COLLAR TO TRANSAXLE
    3 - BOLT (2) - COLLAR TO OIL PAN
  18. Install structural collar (1). See INSTALLATION .

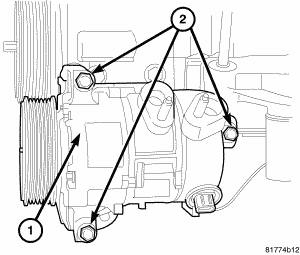

    Fig 9: Removing/Installing A/C Compressor
    GC0060137Courtesy of CHRYSLER LLC
  19. Install A/C compressor (1) to bracket.

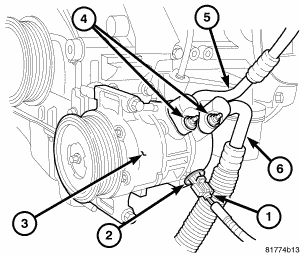

    Fig 10: A/C Compressor-Refrigerant Lines
    GC0060138Courtesy of CHRYSLER LLC
  20. Connect A/C compressor clutch electrical connector (1).
  21. Connect heater return hose to pipe connection at right front frame rail area.

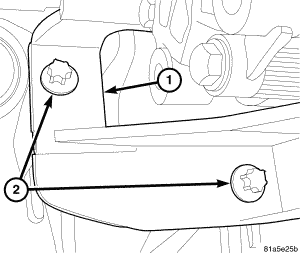

    Fig 11: Identifying Rear Power Steering Pump Mounting Bracket Bolts
    GC0060139Courtesy of CHRYSLER LLC
  22. Install power steering pump and bracket (1) assembly. Refer to INSTALLATION .

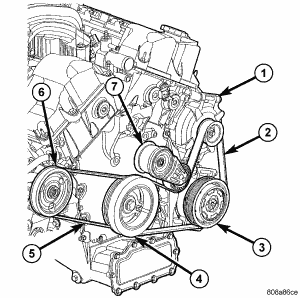

    Fig 12: Accessory Drive Belt System - 2.7L
    GC0060140Courtesy of CHRYSLER LLC
    1 - GENERATOR
    2 - IDLER/TENSIONER
  23. Install accessory drive belts. Refer to INSTALLATION .

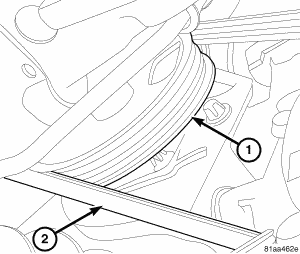

    Fig 13: Removing/Installing Stretch To Fit Power Steering Belt
    GC0060141Courtesy of CHRYSLER LLC
    1 - POWER STEERING PULLEY
    2 - STRETCH TO FIT POWER STEERING BELT
  24. Install power steering belt (2). Refer to INSTALLATION .

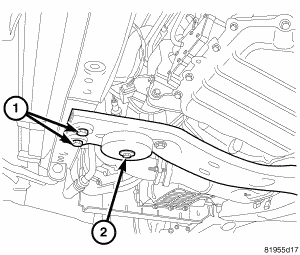

    Fig 14: Identifying Engine Mount/Cross Member
    GC0060142Courtesy of CHRYSLER LLC
  25. Install front engine mount and lower radiator crossmember (2).

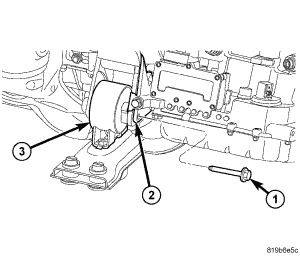

    Fig 15: Identifying Engine Mount Horizontal Thru Bolt
    GC0060143Courtesy of CHRYSLER LLC
  26. Install front engine mount thru bolt (1).

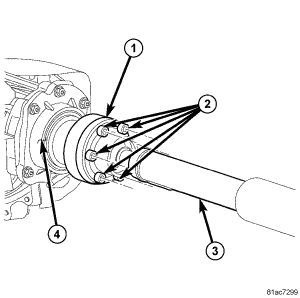

    Fig 16: Identifying Propeller Shaft To PTU & Fasteners
    GC0060144Courtesy of CHRYSLER LLC
  27. Connect the propeller shaft (3) to the ptu, (if equipped). Refer to INSTALLATION .

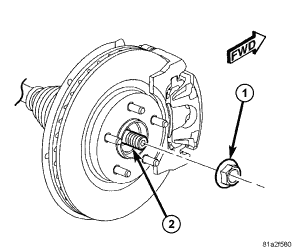

    Fig 17: Identifying Axle Shaft Hub Nut
    GC0060145Courtesy of CHRYSLER LLC
  28. Install both axle shafts (2). Refer to INSTALLATION .
  29. Connect brake line to retaining clips that attach to lower radiator crossmember.
  30. Install fasteners attaching ABS module to lower radiator crossmember.
  31. Connect engine electrical harness to PCM and bulkhead connectors.

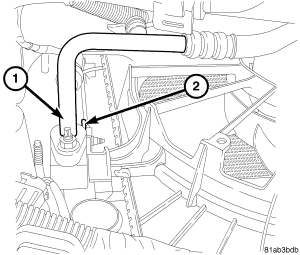

    Fig 18: Identifying A/C Line
    GC0060146Courtesy of CHRYSLER LLC
    1 - A/C LINE
    2 - SUPPORT BRACKET
  32. Automatic Transmission Equipped Vehicles:
    1. Connect transmission shift cable.
    2. Connect transmission electrical harness connectors.
    3. Connect transmission oil cooler lines.
  33. Install cooling module (fan, radiator, A/C condenser). Connect A/C lines (1) to condenser. Refer to INSTALLATION .
    Fig 19: Identifying A/C Line
    GC0060146Courtesy of CHRYSLER LLC
    1 - A/C LINE
    2 - SUPPORT BRACKET
  34. Manual Transmission Equipped Vehicles:
    1. Connect transmission shift cables.
    2. Connect back up lamp switch connector.
  35. Install cooling module (fan, radiator, A/C condenser). Connect A/C lines (1) to condenser. Refer to INSTALLATION .

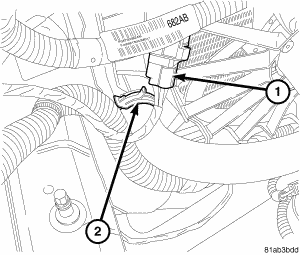

    Fig 20: Identifying Upper Radiator Hose
    GC0060147Courtesy of CHRYSLER LLC
    1 - ELECTRICAL CONNECTOR
    2 - UPPER RADIATOR HOSE
  36. Connect upper (2) and lower radiator hoses to radiator.
  37. Ensure oil pan drain plug is tight. Install new oil filter.

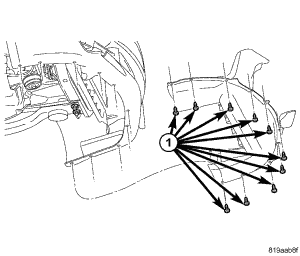

    Fig 21: Identifying Front Lower Closeout Fascia
    GC0060148Courtesy of CHRYSLER LLC
  38. Install front fascia closeout (1) and lower air shield to lower radiator crossmember.

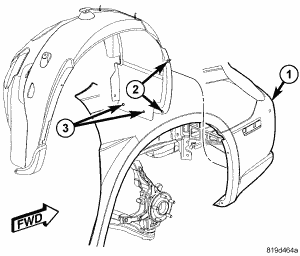

    Fig 22: Identifying Front Splash Shields
    GC0060149Courtesy of CHRYSLER LLC
  39. Install left and right splash shields (2). Refer to INSTALLATION .

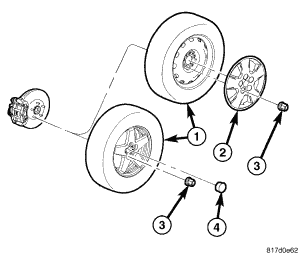

    Fig 23: Identifying Tire & Wheel Mounting
    GC0060150Courtesy of CHRYSLER LLC
  40. Install both front wheels (1).
  41. Fill engine crankcase with proper oil to correct level.
  42. Evacuate and recharge Air Conditioning system.
    Fig 24: Identifying Inlet Hose & Electrical Connection
    GC0060132Courtesy of CHRYSLER LLC
  43. Install throttle body air inlet hose (1) and air cleaner housing assembly.
  44. Fill cooling system.
  45. Connect negative battery cable.
  46. Start engine and run until operating temperature is reached.
