Rear Mount

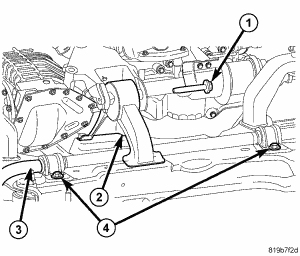

Fig 1: Identifying Rear Torque Mount
GC0060182Courtesy of CHRYSLER LLC
  1. Position rear mount on suspension crossmember and loosely install bolts.
  2. Position mount bracket (2) on transaxle and install bolts. Tighten to 95 N.m (70 ft. lbs.).
  3. Tighten rear mount to crossmember bolts to 61 N.m (45 ft. lbs.)
    NOTE: Be sure the weight of the engine is static and in rest position.
  4. Install rear mount to bracket through bolt (1) and tighten to 75 N.m (55 ft. lbs.).
  5. Tighten front mount through bolt to 75 N.m (55 ft. lbs.)
  6. Install throttle body air inlet hose and air cleaner housing assembly.
