Front Mount

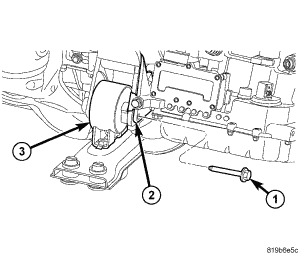

Fig 1: Identifying Engine Mount Horizontal Thru Bolt
GC0060184Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Raise vehicle and support.
  3. Remove the front mount through bolt (1).

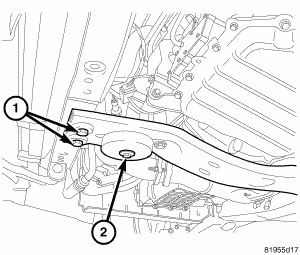

    Fig 2: Identifying Engine Mount/Cross Member
    GC0060185Courtesy of CHRYSLER LLC
  4. Remove front engine mount bolt (2).
  5. Remove crossmember front mounting bolts (1).

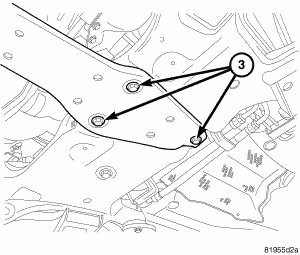

    Fig 3: Identifying Rear Crossmember
    GC0060186Courtesy of CHRYSLER LLC
  6. Remove crossmember mounting bolts (3).
  7. Remove crossmember from vehicle.

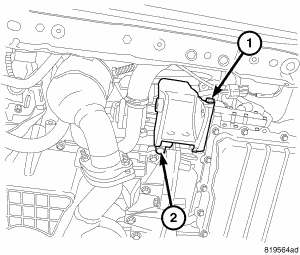

    Fig 4: View Of Bracket In Place
    GC0060187Courtesy of CHRYSLER LLC
  8. Remove front engine mounting bolts (2).
  9. Loosen front engine mounting thru bolts (1).

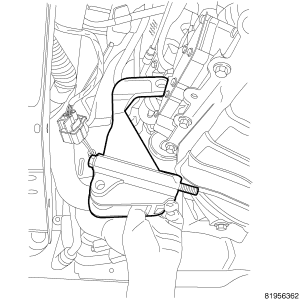

    Fig 5: Identifying Bracket For Mount
    GC0060188Courtesy of CHRYSLER LLC
  10. Remove the front engine mount bracket from engine block.
