Front Mount

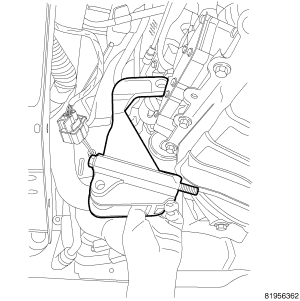

Fig 1: Identifying Bracket For Mount

Courtesy of CHRYSLER LLC

Install front anti-roll mount bracket and start bolts.

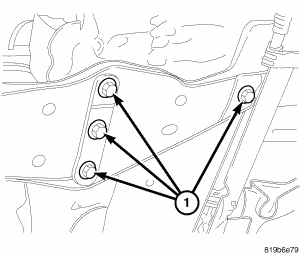

Fig 2: View Of Bracket In Place
Courtesy of CHRYSLER LLC
Install the engine anti-roll mount and bolts (1) and (2). Tighten to 50 N.m (37 ft. lbs.)

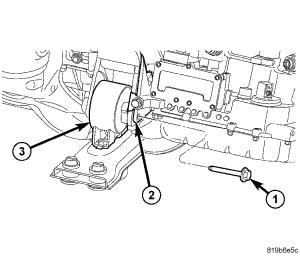

Fig 3: Identifying Engine Mount Horizontal Thru Bolt
Courtesy of CHRYSLER LLC
Install mount through bolt (1) and tighten to 47 N.m (35 ft. lbs.).

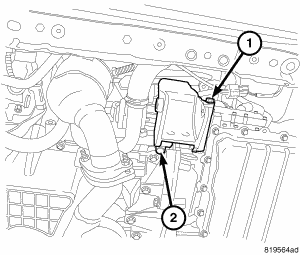

Fig 4: Identifying Engine Mount/Cross Member
Courtesy of CHRYSLER LLC
Install lower engine anti-roll mount bolt (2) and tighten bolts to 47 N.m (35 ft. lbs.).
Install bolts (1) and tighten to 55 N.m (40.5 ft. lbs.).

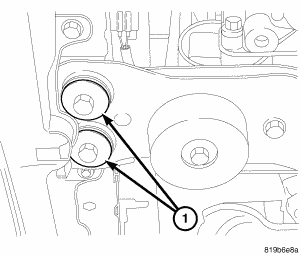

Fig 5: Identifying Front Fore Cross Member Bolts
Courtesy of CHRYSLER LLC
Install bolts (1) and tighten to 55 N.m (40.5 ft. lbs.).

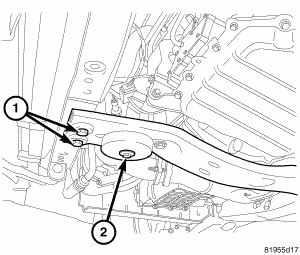

Fig 6: Identifying Front Aft Crossmember Bolts
Courtesy of CHRYSLER LLC
Tighten bolts (1) to 50 N.m (37 ft. lbs.).
If equipped, install the belly pan.
Lower vehicle.
Connect the negative battery cable.
