Structural Collar

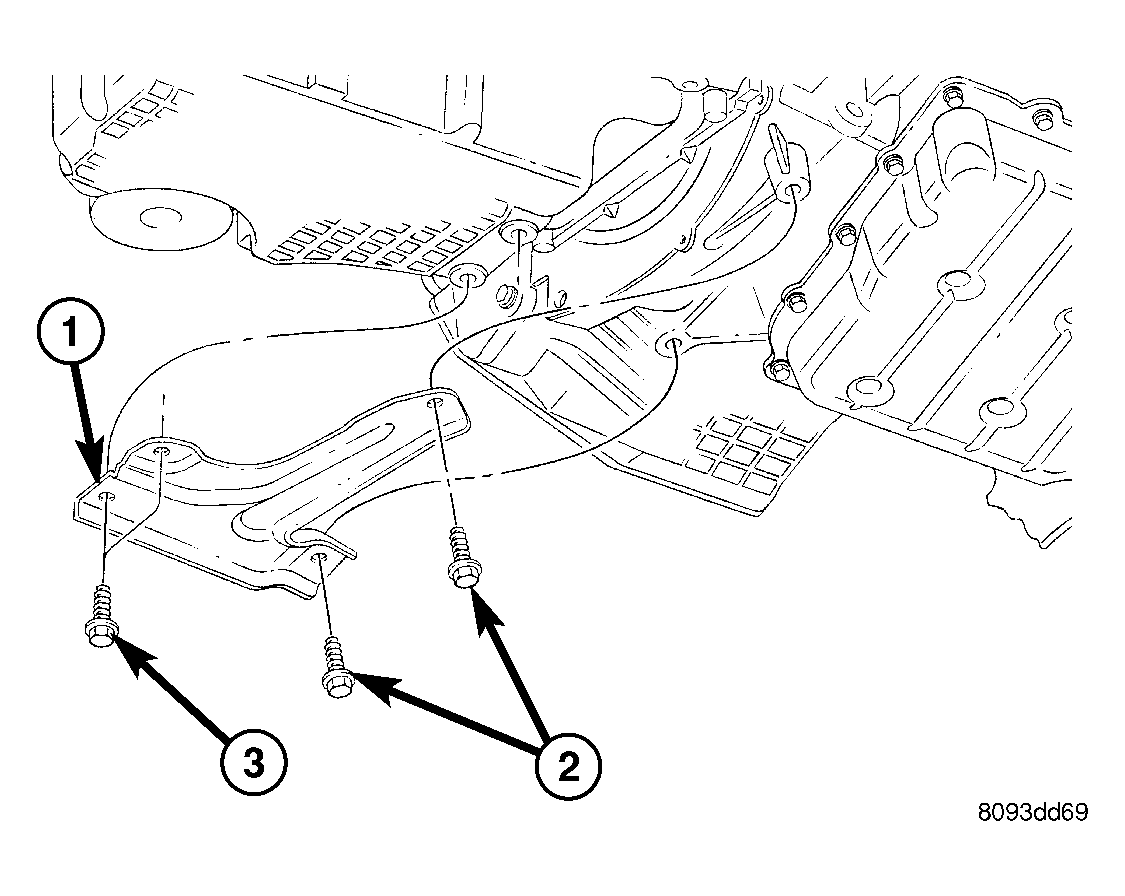

Fig 1: Identifying Structural Collar (Note: cross-under pipe not shown)
GC0032153Courtesy of CHRYSLER LLC
1 - STRUCTURAL COLLAR
2 - BOLT (2) - COLLAR TO TRANSAXLE
3 - BOLT (2) - COLLAR TO OIL PAN
CAUTION: The collar must be tightened using this service procedure, as damage to transaxle case and/or oil pan may occur.
  1. Position structural collar on oil pan and transaxle.
  2. Loosely install all bolts.
  3. Tighten the collar to oil pan bolts (3) to 55 N.m (40 ft. lbs.).
  4. Tighten collar to transaxle bolts (2) to 55 N.m (40 ft. lbs.).
  5. Lower vehicle.
