Rocker Arms

Fig 1: Removing/Installing Rocker Arm - 2.7L

Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL 8215-A

2 - SPECIAL TOOL 8216-A

3 - 3/8" DRIVE RACHET

Lubricate rocker arms with clean engine oil before installation.
Rotate engine until cam lobe is on its base circle (heel) of rocker arm being installed.
Using Special Tools 8215-A (1) and 8216-A Adapter, depress valve spring only enough to install rocker arm.
Install rocker arm in original position (if reused) over valve and lash adjuster. Release tension on valve spring.
NOTE: Inspect rocker arm for proper engagement into lash adjuster and valve tip.
Repeat procedure for each rocker arm being installed.

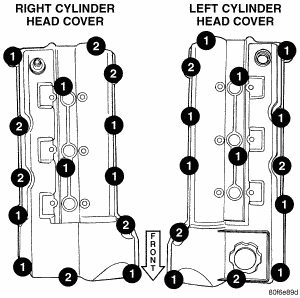

Fig 2: Cylinder Head Cover Fastener Loosening/Tightening Sequence
Courtesy of CHRYSLER LLC

1 - DOUBLE ENDED STUDS

2 - BOLTS
Install cylinder head cover(s). Refer to applicable procedure.
