Sensor-Inlet Air Temperature 2.7L

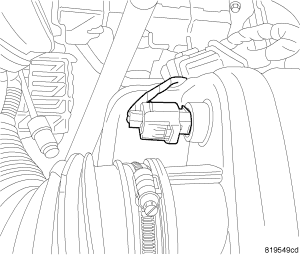

Fig 1: View Of Inlet Air Temperature Sensor Electrical Connector
GC0060563Courtesy of CHRYSLER LLC
  1. Install sensor and turn a 1/4 turn.
  2. Connect electrical connector and lock.
  3. Connect negative battery cable.
