Harness-Occupant Restraint Controller Jumper

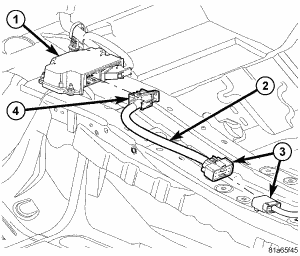

Fig 1: Removing/Installing ORC Jumper Harness

Courtesy of CHRYSLER LLC

1. Connect the ORC jumper harness (2) to the body harness (3).
2. Connect the ORC jumper harness connector (4) to the ORC (1).
3. Install the center console. Refer to INSTALLATION .

WARNING: Do not connect the battery negative cable. See DIAGNOSIS AND TESTING . Serious or fatal injury may result if the system test is not performed first.
