Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> B212C-Ignition Run/Start Input Circuit Open >> Notes

B212C-Ignition Run/Start Input Circuit Open: Notes

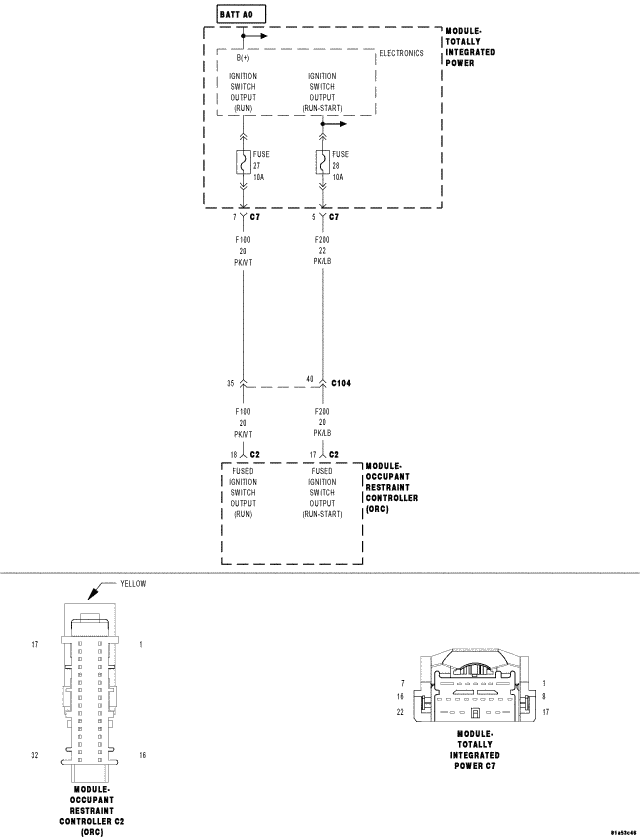

Fig 1: Occupant Restraint Controller (ORC) Power Supply
GC0059173Courtesy of CHRYSLER LLC
