Rear Timing Belt Cover

WARNING: This page is about a different variant/trim than selected.

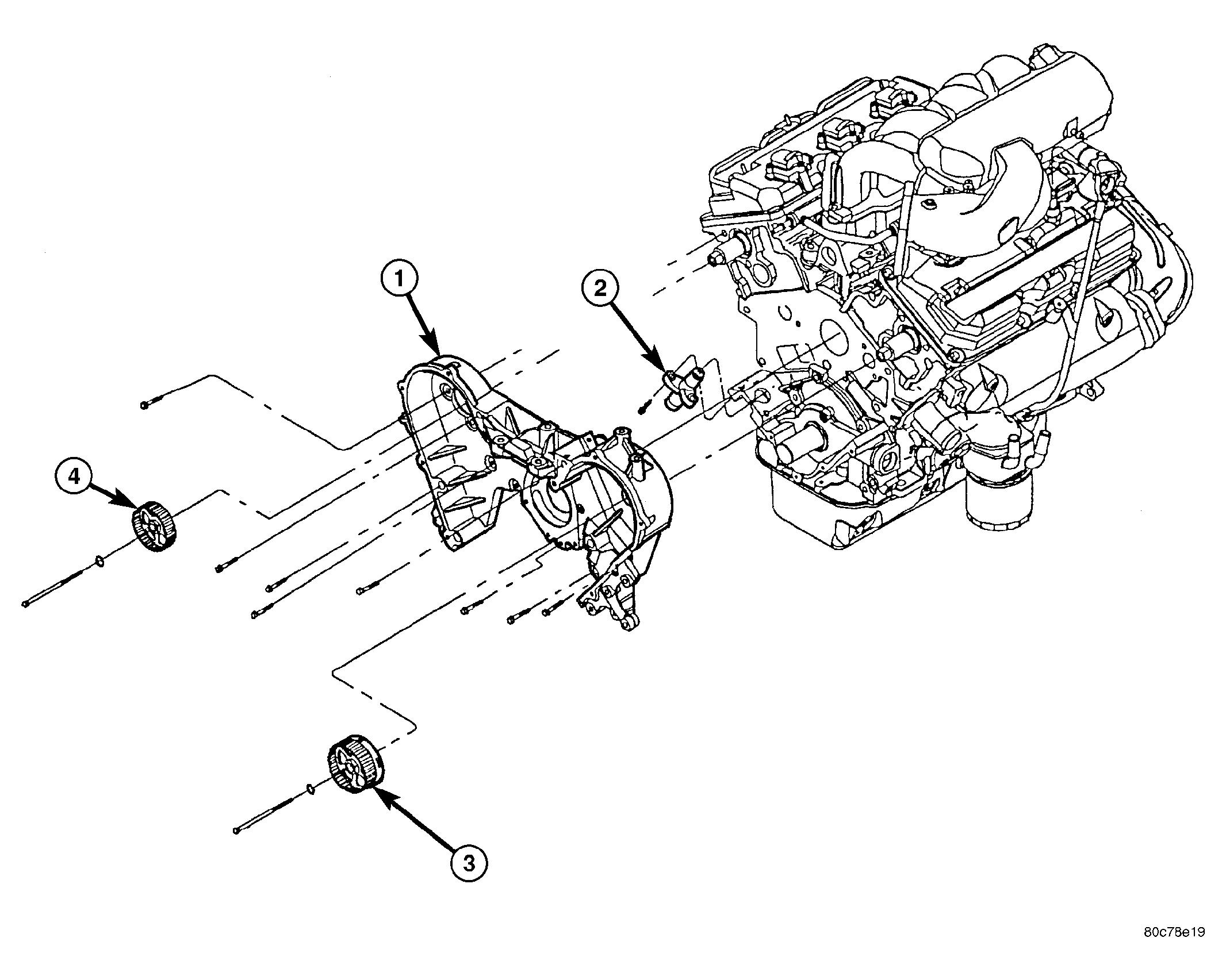

Fig 1: View Of Rear Timing Belt Cover
GC0001986Courtesy of CHRYSLER LLC
  1. Perform fuel pressure release procedure. Refer to STANDARD PROCEDURE .
  2. Disconnect the negative battery cable.
  3. Remove timing belt. See REMOVAL .
  4. Remove camshaft sprockets. See REMOVAL .

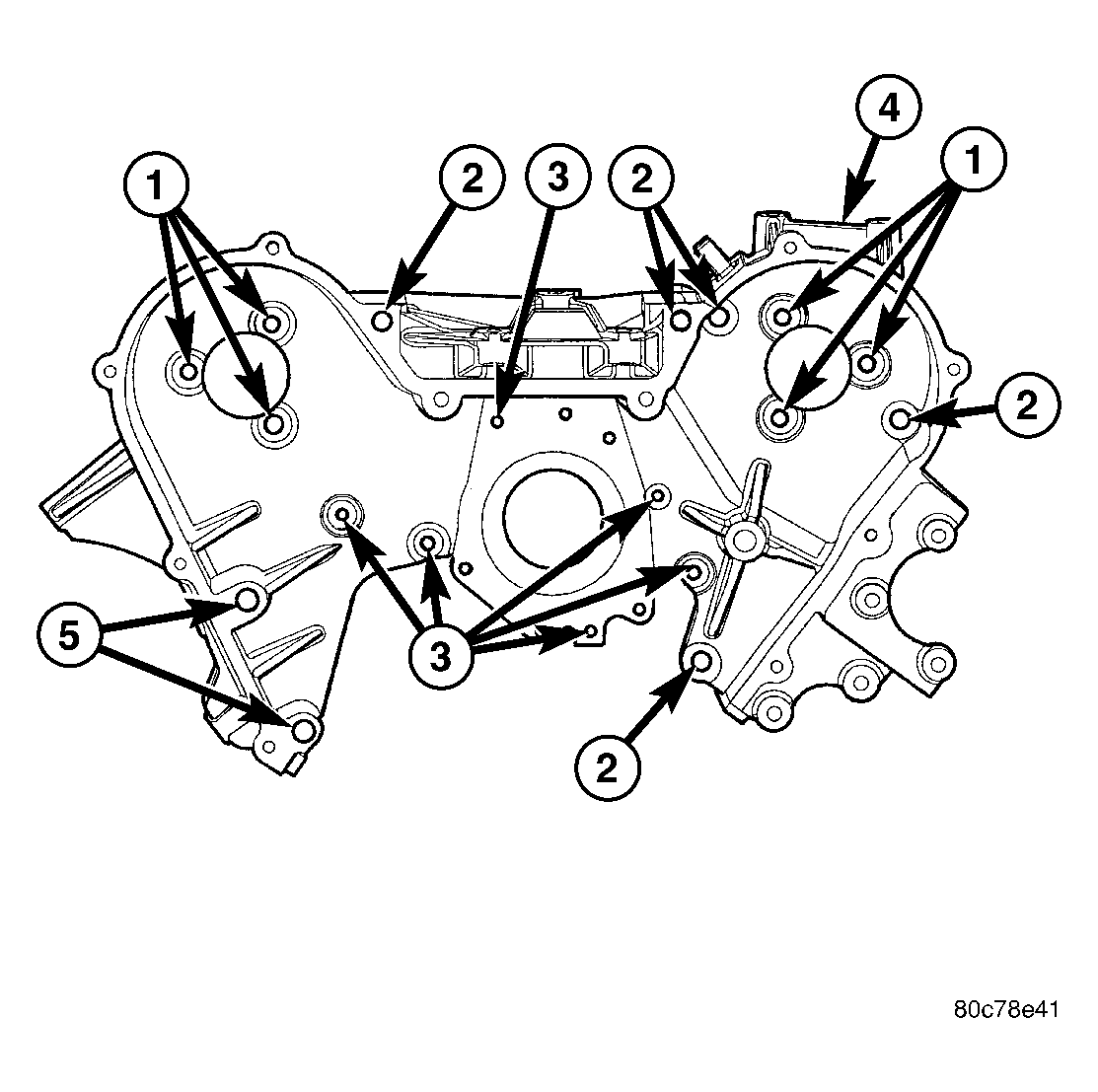

    Fig 2: Identifying Rear Timing Belt Cover Fasteners
    GC0001987Courtesy of CHRYSLER LLC
    1 - M8 FASTENERS (APPLY THREAD SEALANT)
    2 - M10 FASTENERS
    3 - M6 FASTENERS
    4 - REAR TIMING BELT COVER
    5 - M10 FASTENERS (STUD/NUT)
  5. Remove rear timing belt cover bolts.
  6. Remove the rear cover.
NOTE: The rear timing belt cover has O-rings to seal the water pump passages to cylinder block. Do not reuse the O-rings.
