Piston Ring Fitting

WARNING: This page is about a different variant/trim than selected.

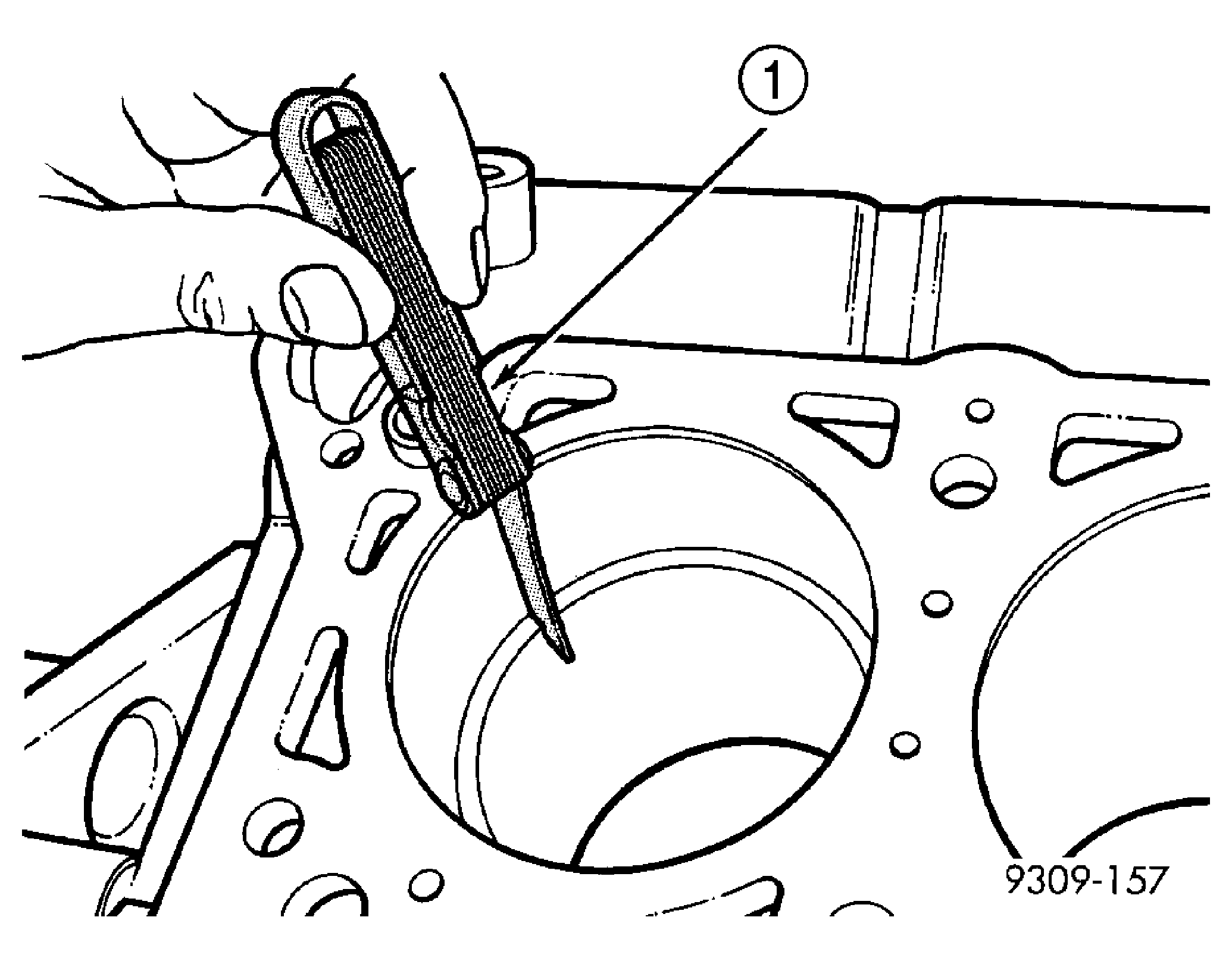

Fig 1: Checking Piston Rings Gap
GC0001921Courtesy of CHRYSLER LLC
  1. Wipe cylinder bore clean. Insert ring and push down with piston to ensure it is square in bore. The ring gap measurement must be made with the ring positioning at least 12 mm (0.50 in.) from bottom of cylinder bore. Check gap with feeler gauge (1). For clearance specifications, see SPECIFICATIONS .

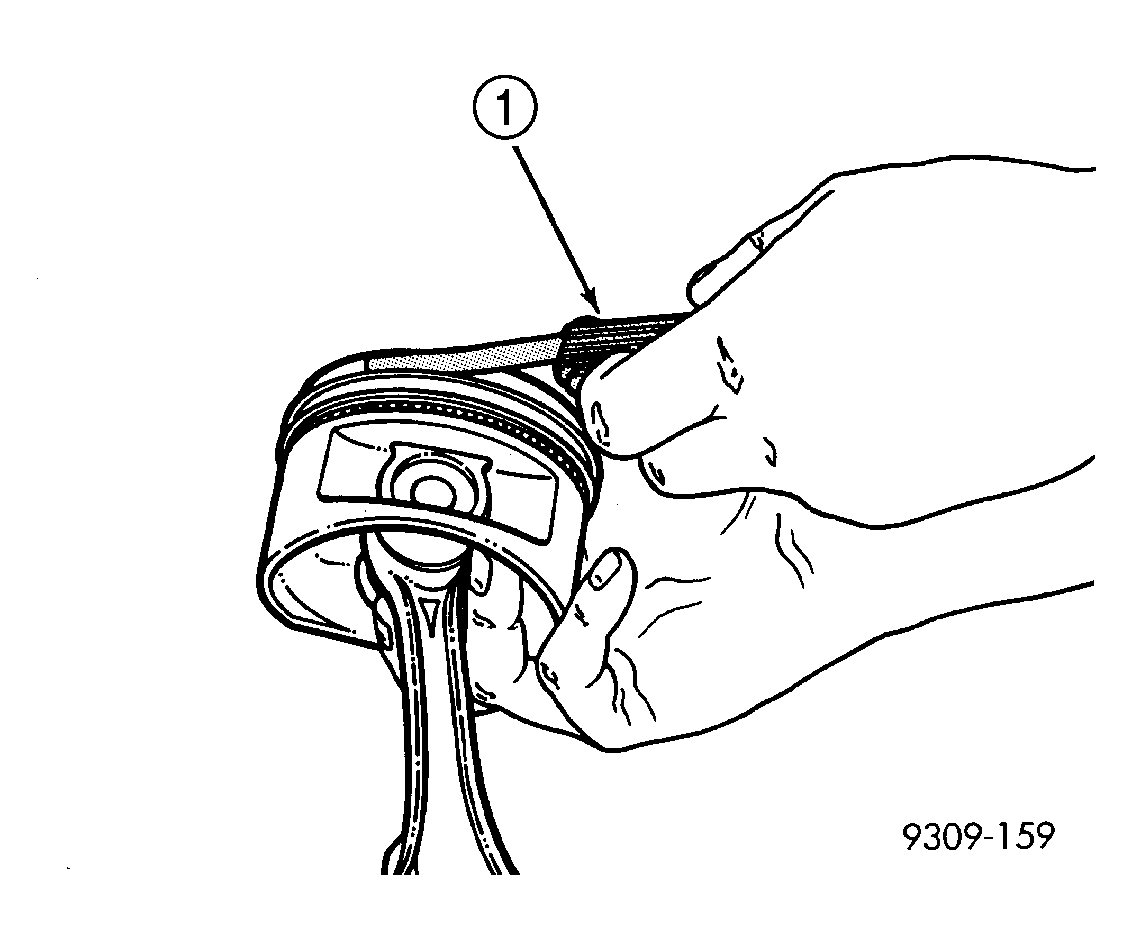

    Fig 2: Measuring Piston Ring Side Clearance
    GC0001920Courtesy of CHRYSLER LLC
    1 - FEELER GAUGE
  2. Check piston ring to groove clearance (1). For clearance specifications, see SPECIFICATIONS .
