Vibration Damper

WARNING: This page is about a different variant/trim than selected.

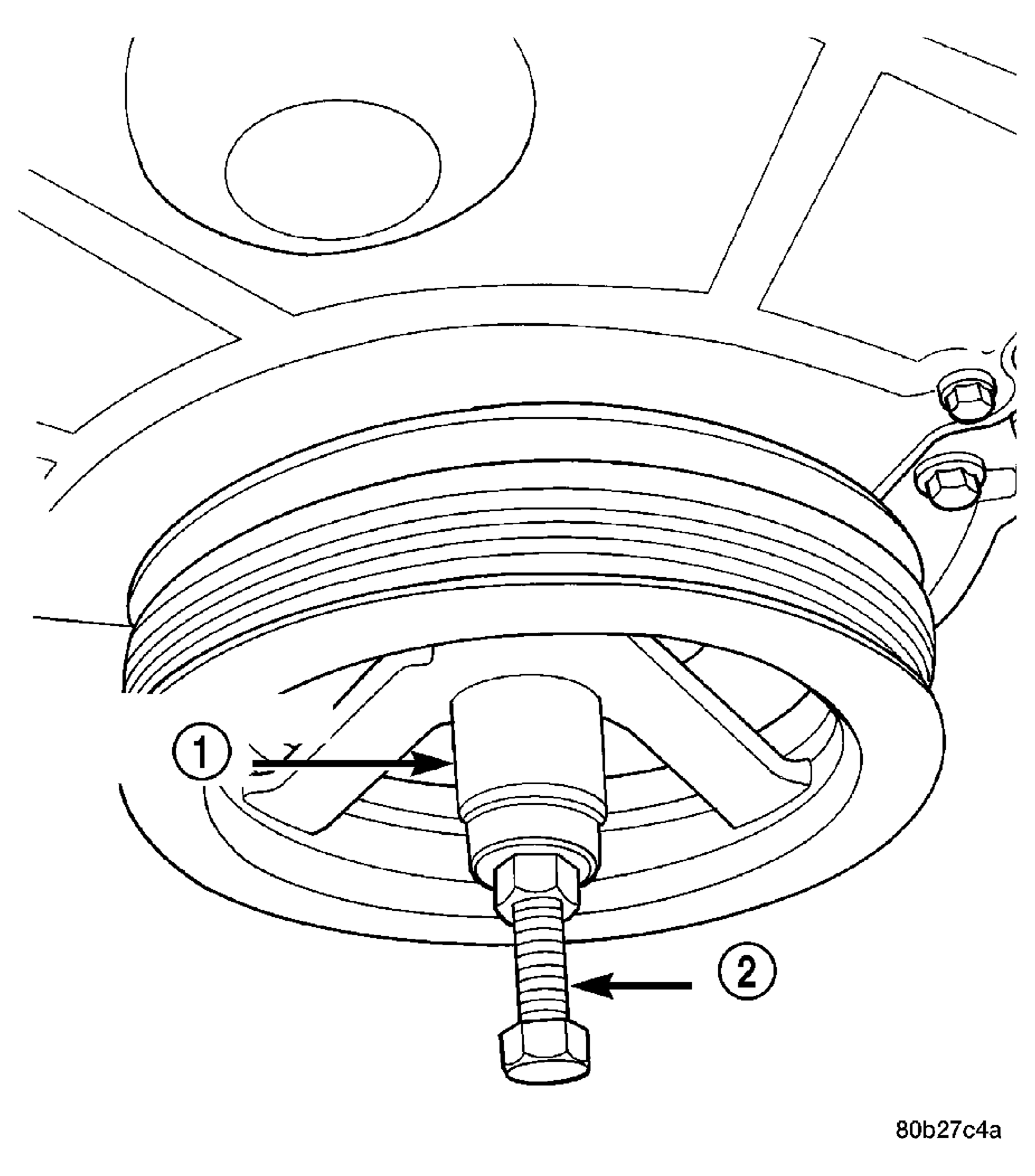

Fig 1: Installing Crankshaft Damper
GC0001932Courtesy of CHRYSLER LLC
  1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt (2), with Nut and Thrust Bearing from 6792 and 6792-1 (1) Installer.
  2. Install vibration damper bolt. Torque bolt to 95 N.m (70 ft. lbs.).
  3. Install the lower crossmemeber. Refer to INSTALLATION .
  4. Install accessory drive belt. Refer to INSTALLATION .
  5. Install the accessory drive belt splash shield and right front wheel.
  6. Lower vehicle.
  7. Install right engine mount. See INSTALLATION .
  8. Connect negative battery cable.
