Transmission Control Module

WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: TCM LOCATION
GC0053315Courtesy of CHRYSLER LLC
  1. The TCM (2) is located between the brake pedal bracket (1) and the left kick panel (3).

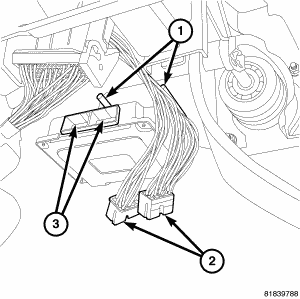

    Fig 2: TCM UNPLUGGED
    GC0053318Courtesy of CHRYSLER LLC
  2. Unplug the two electrical connectors (2) at the TCM.
  3. Remove the two nuts (1) that hold the TCM to the bulkhead.

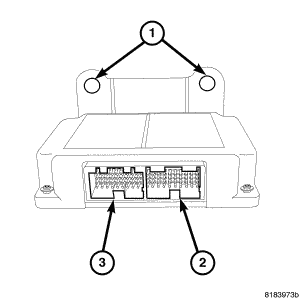

    Fig 3: TCM OUT
    GC0053319Courtesy of CHRYSLER LLC
  4. Remove the TCM.
