Shift Control: Notes
WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

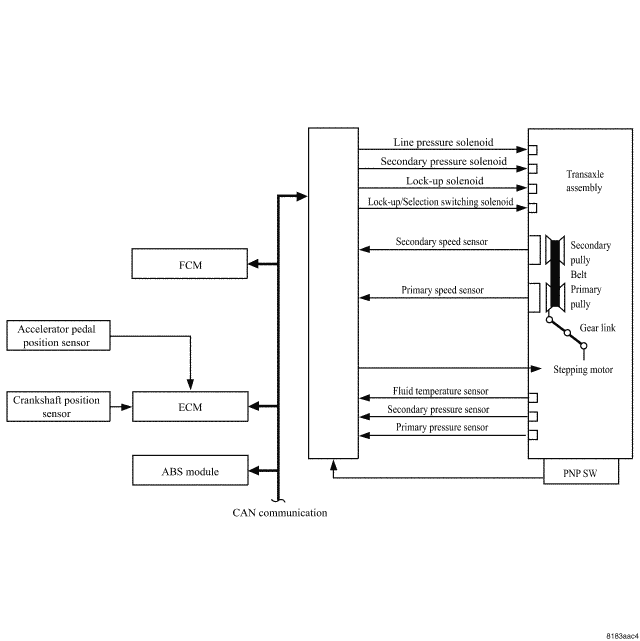

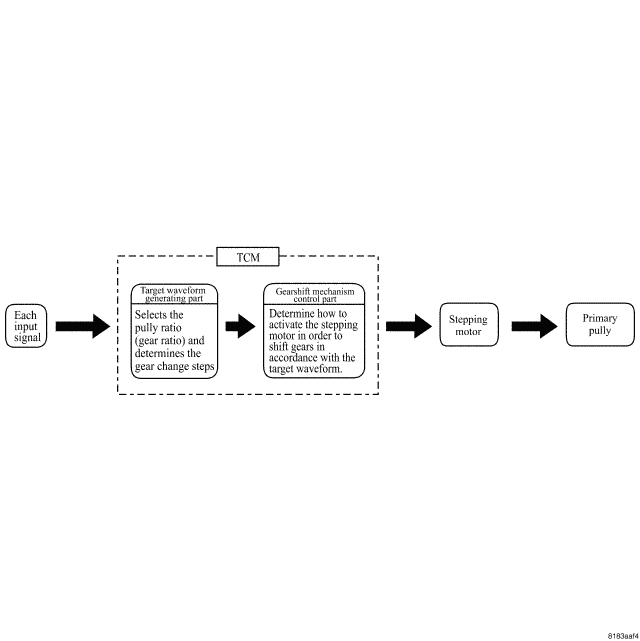

In order to select the gear ratio which can obtain the driving force in accordance with driver's intention and the vehicle condition, TCM monitors the driving conditions, such as the vehicle speed and the throttle position and selects the optimum gear ratio, and determines the gear change steps to the gear ratio. Then it sends the command to the stepping motor, and controls the flow-in/flow-out of line pressure to/from the primary pulley to determine the position of the moving-pulley and control the gear ratio.
Selection of the gear ratio is set for every position separately.
