Module-Powertrain Control (Pcm)

WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

USE THE SCAN TOOL TO REPROGRAM THE NEW POWERTRAIN CONTROL MODULE (PCM) WITH THE VEHICLES ORIGINAL IDENTIFICATION NUMBER (VIN) AND THE VEHICLES ORIGINAL MILEAGE. IF THIS STEP IS NOT DONE, A DIAGNOSTIC TROUBLE CODE (DTC) MAY BE SET.

To avoid possible voltage spike damage to PCM, ignition key must be off, and negative battery cable must be disconnected before unplugging PCM connectors.

Disconnect negative battery cable.

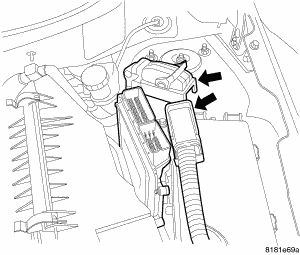

Fig 1: WIRING CONNECTOR
Courtesy of CHRYSLER LLC
Unlock and disconnect the electrical connectors from PCM.

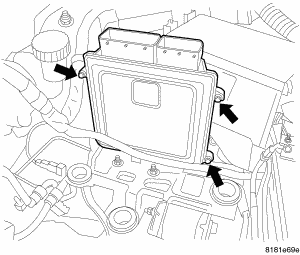

Fig 2: MOUNTING BOLTS
Courtesy of CHRYSLER LLC
Remove the air cleaner box.
Remove the three mounting bolts.

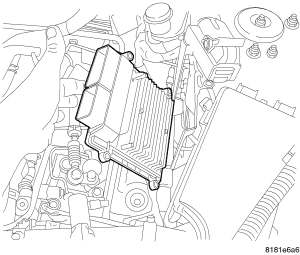

Fig 3: MODULE OUT
Courtesy of CHRYSLER LLC
Tip module out and remove from bracket.
