Final Drive Control Module

WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

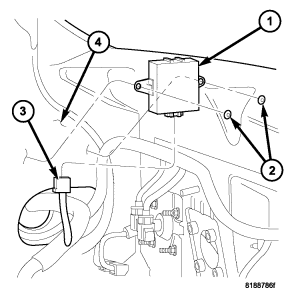

Fig 1: ECC CONTROL MODULE
GC0053304Courtesy of CHRYSLER LLC
  1. Remove the left front kick panel. Refer to REMOVAL .
  2. Remove module retaining bolts (2).
  3. Remove electrical connector (3).
  4. Remove ECC module (1).
