Engine Control Module (ECM)

WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

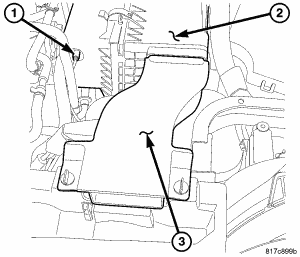

Fig 1: AIR INLET DUCT
GC0053306Courtesy of CHRYSLER LLC
  1. Remove air inlet duct (3).
  2. Disconnect negative battery cable.
  3. Disconnect vacuum hose (1).
  4. Remove air cleaner housing assembly (2). Refer to appropriate ENGINE - SERVICE INFORMATION article.
    Fig 2: ENGINE CONTROL MODULE
    GC0053307Courtesy of CHRYSLER LLC
  5. Disconnect both ECM (2) electrical connectors by pulling tabs at ends of connectors.
  6. Remove ECM bracket retaining bolts and remove ECM (2) and bracket assembly from vehicle.
  7. Remove ECM to bracket retaining nuts and remove ECM from bracket.
