Engine Control Module (ECM)

WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

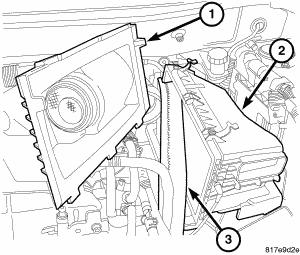

Fig 1: ENGINE CONTROL MODULE
GC0053308Courtesy of CHRYSLER LLC
  1. Install ECM on mounting bracket. See Fig 1. Torque nuts to 10.7N.m (95 lbs. in.).
  2. Install ECM (2) and mounting bracket assembly in vehicle. See Fig 1.
  3. Connect both ECM (2) electrical connectors.

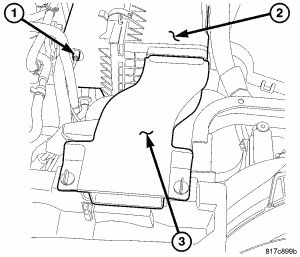

    Fig 2: AIR INLET DUCT
    GC0053309Courtesy of CHRYSLER LLC
  4. Install air cleaner housing assembly (2). Refer to appropriate ENGINE - SERVICE INFORMATION article.
  5. Connect vacuum hose (1).
  6. Connect negative battery cable.
  7. Install air inlet tube (3).
  8. Reprogram ECM. See STANDARD PROCEDURE .
