Engine Control Module (ECM)

WARNING: This page is about a different car, the 2007 Jeep Patriot and 2007 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

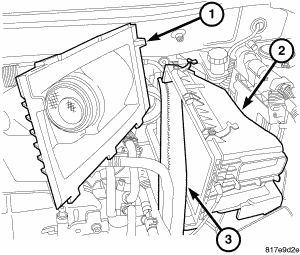

Fig 1: ENGINE CONTROL MODULE
GC0053305Courtesy of CHRYSLER LLC

The ECM is located in the left side of engine compartment attached to the left inner fender behind the air cleaner housing (2).
