Speaker-Rear Quarter Panel

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

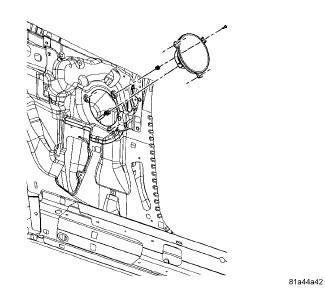

Fig 1: View Of Rear Quarter Speaker
GC0120930Courtesy of CHRYSLER LLC
  1. Connect the electrical connector and install the speaker.
  2. Install the speaker mounting fasteners.
  3. Install the rear quarter trim panel. Refer to Body/Interior/PANEL, Quarter Trim - Installation .
  4. Connect the battery negative cable.
