Section 169 (Overhead Console (Service Information)): Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Avenger and 2009 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

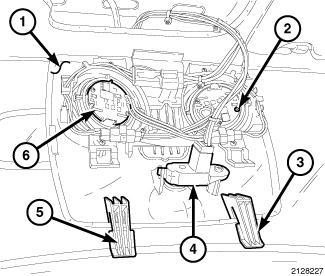

Fig 1: Overhead Console Components

Courtesy of CHRYSLER LLC

Position the overhead console (1) in the vehicle near the headliner assembly.
Connect the courtesy lamps (2 and 6), if equipped connect the infrared temperature sensor (4) and power sunroof switch electrical connectors.
Position the overhead console so that the rear retaining tabs (3 and 5) are lined up properly at the rear of the overhead console opening and slide the console in place.

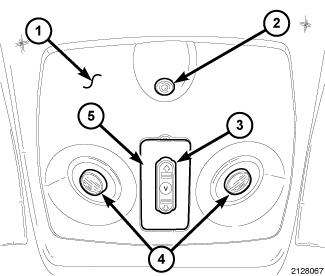

Fig 2: Overhead Console
Courtesy of CHRYSLER LLC
Push straight up evenly to engage the side locking tabs on the center mounting clip (5) of the overhead console and lock the console in place.
NOTE: On vehicles equipped with a Low Line overhead console, the courtesy lamp lens is the forward retainer. engage the clip on the courtesy lamp lens and lock the console in place.
Connect the battery negative cable.
