C211D-Ignition Run/Start Input Circuit High: Notes

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

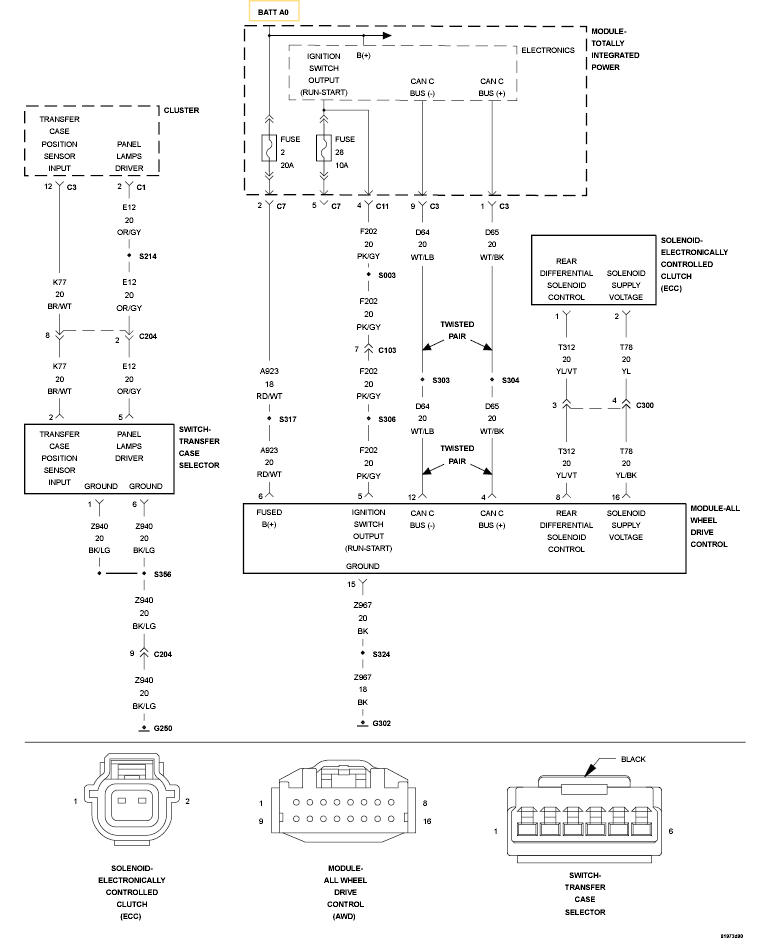

Fig 1: AWD Clutch Power Control Circuit
GC0099333Courtesy of CHRYSLER LLC
