Diagnostic Test

  1. 1) PCM WIRING OR CONNECTORS

    Turn the ignition off.

    Using the wiring diagram/schematic as a guide, inspect the wiring and each connector at the PCM.

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform PCM VERIFICATION TEST .

    No

    1. Go to step  2).
  2. 2) CHECKING THE PCM GROUND CIRCUITS

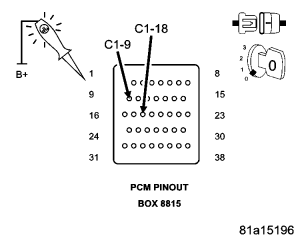

    Fig 1: Checking The PCM Ground Circuits
    GC0049762Courtesy of CHRYSLER LLC

    Turn the ignition off.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Using a 12 volt test light connected to 12 volts, check the PCM ground circuits.

    Wiggle test each circuit during the test to check for an intermittent open in the circuit.

    NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated and bright?

    Yes

    1. Go to step  3).

    No

    1. Repair the PCM ground circuit(s) for an open circuit or high resistance.
    2. Perform PCM VERIFICATION TEST .
  3. 3) CHECKING THE PCM POWER SUPPLY CIRCUITS

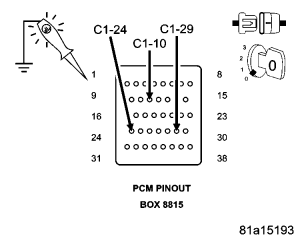

    Fig 2: Checking The PCM Power Supply Circuits
    GC0049763Courtesy of CHRYSLER LLC
    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Using a 12 volt test light connected to ground, check the PCM power supply circuits.

    Wiggle test each circuit during the test to check for an intermittent open in the circuit.

    NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated and bright?

    Yes

    1. Go to step  4).

    No

    1. Repair the PCM power supply circuit(s) for an open circuit or high resistance.
    2. Perform PCM VERIFICATION TEST .
  4. 4) CHECKING THE PCM SWITCHED POWER SUPPLY CIRCUITS

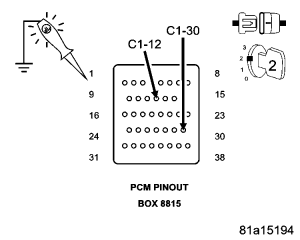

    Fig 3: Checking The PCM Switched Power Supply Circuits
    GC0049764Courtesy of CHRYSLER LLC

    Turn the ignition on.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Using a 12 volt test light connected to ground, check the PCM switched power supply circuits.

    Turn the ignition off.

    Using a 12 volt test light connected to ground, check the PCM switched power supply circuits.

    Wiggle test each circuit during the test to check for an intermittent open or short in the circuit.

    NOTE: The test light should be illuminated and bright with the ignition on and not illuminated with the ignition off. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated as described above?

    Yes

    1. Go to step  5).

    No

    1. Repair the PCM switched power supply circuit(s) as necessary.
    2. Perform PCM VERIFICATION TEST .
  5. 5) CHECKING THE PCM FUSED IGNITION SWITCH CIRCUITS

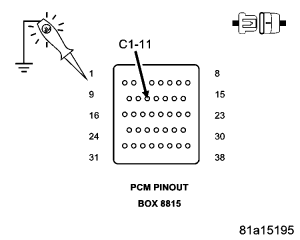

    Fig 4: Checking The PCM Fused Ignition Switch Circuits
    GC0049765Courtesy of CHRYSLER LLC

    Turn the ignition on.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Using a 12 volt test light connected to ground, check the PCM Fused Ignition Switch circuits.

    Check each circuit with the ignition off, ignition on, engine not running position, and during cranking.

    Wiggle test each circuit during the test to check for an intermittent open in the circuit.

    NOTE: The test light should be illuminated and bright with the ignition on and not illuminated with the ignition off. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated as described above?

    Yes

    1. Test complete.

    No

    1. Repair the PCM Fused Ignition Switch circuit(s) for as necessary.
    2. Perform PCM VERIFICATION TEST .
