*Checking The Oxygen Sensor Operation: Notes

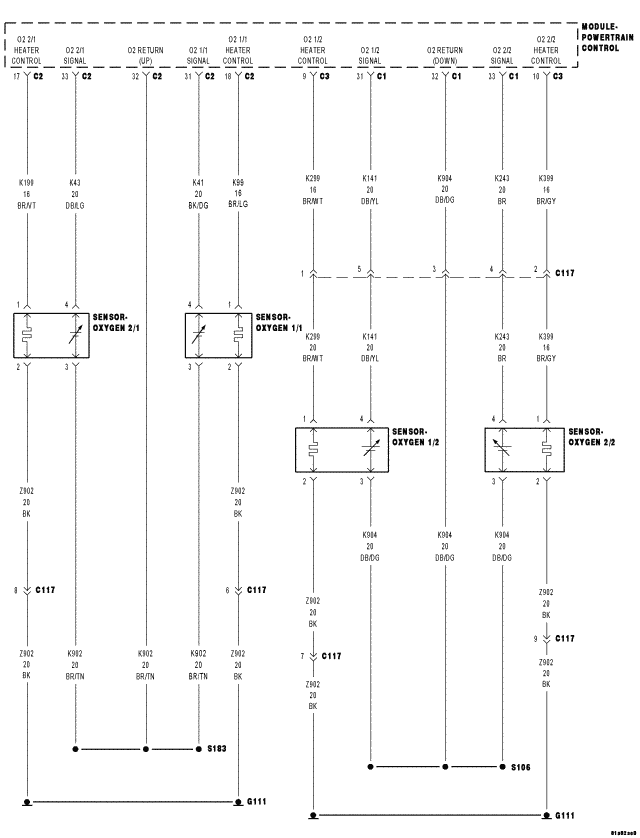

Fig 1: Oxygen Sensor Circuit Schematic

GC0059375

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
