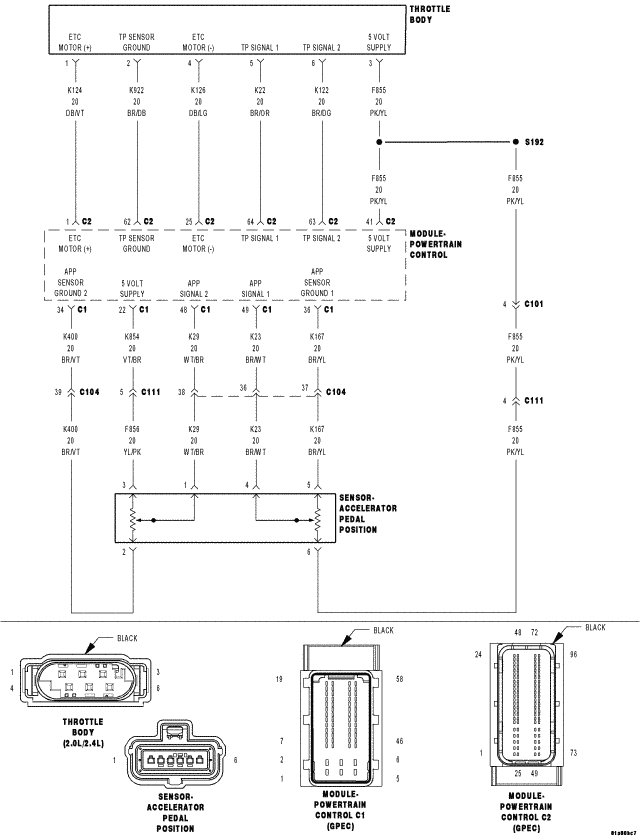

Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2118 To P2305 - GPEC >> P2128-Accelerator Pedal Position Sensor Circuit High >> Circuit Schematic
