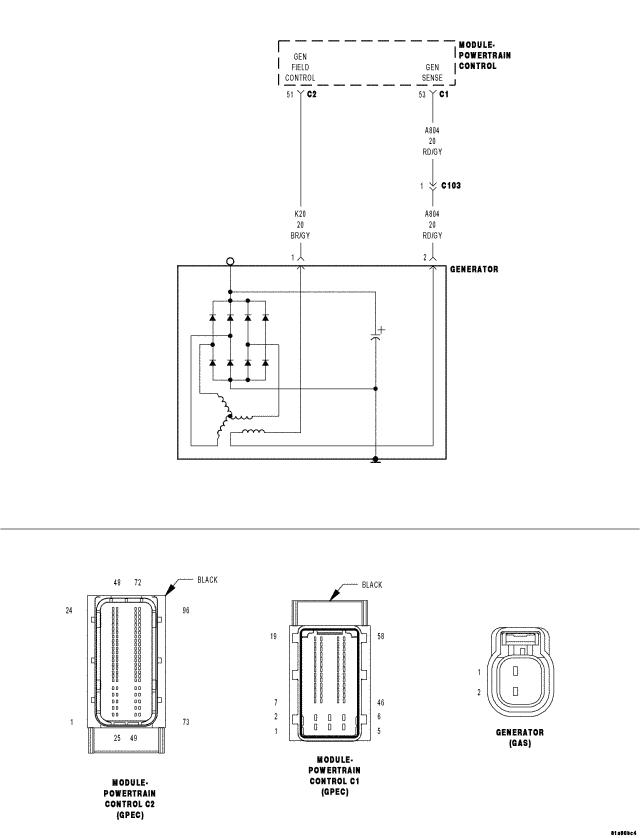

Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Engine Performance >> System >> DTC U1418, Intermittent Condition, System Checks, Component Checks, Symptom Tests - GPEC >> *Checking The Charging System Operation >> Circuit Schematic
