Exhaust System-Description

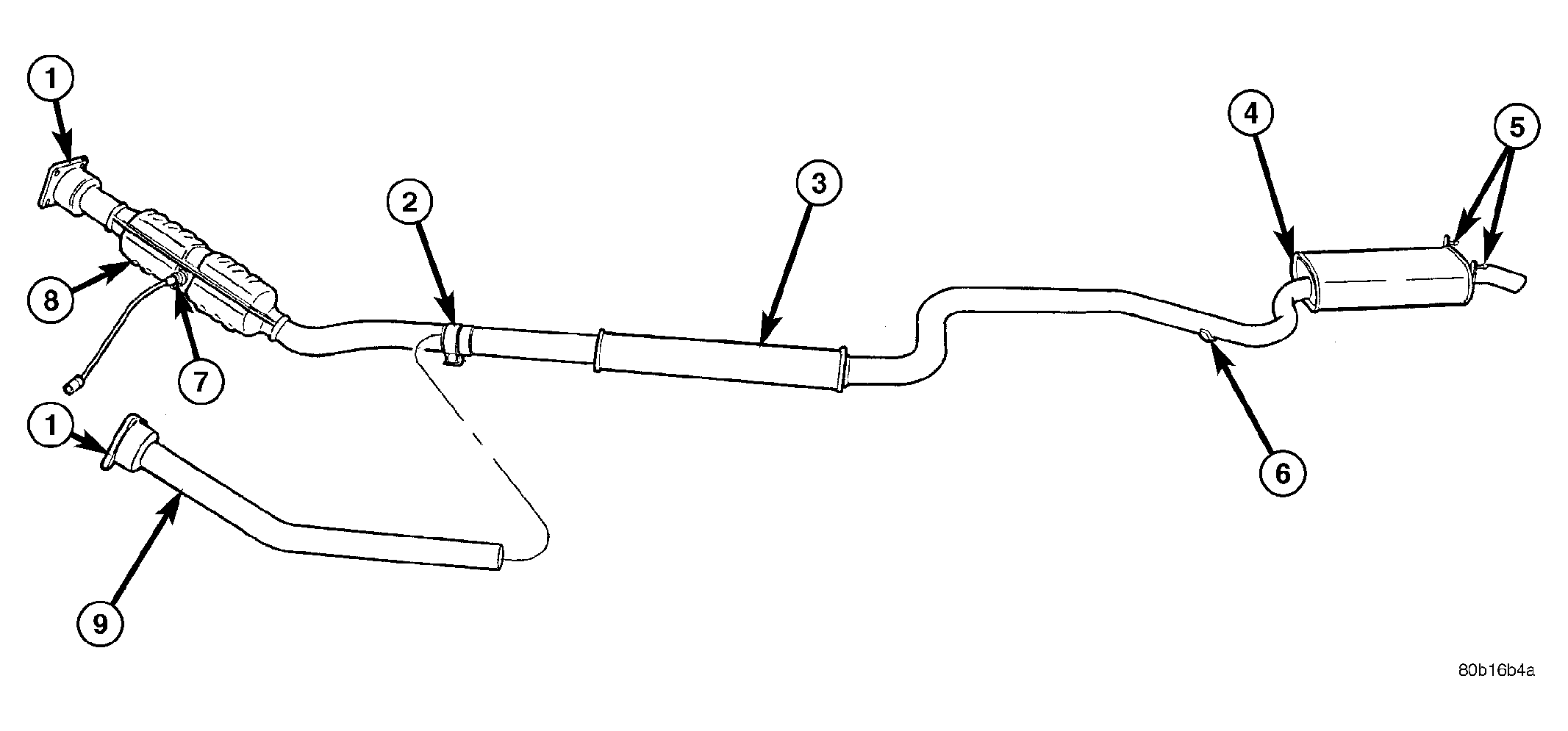

Fig 1: Identifying Exhaust System Components

Courtesy of CHRYSLER LLC

1 - FLEX JOINT

2 - BAND CLAMP

3 - RESONATOR/PIPE ASSEMBLY

4 - MUFFLER/PIPE ASSEMBLY

5 - REAR MUFFLER SUPPORTS

6 - MIDPIPE SUPPORT

7 - OXYGEN SENSOR

8 - CATALYTIC CONVERTOR (2.0L/2.4L)

9 - CONNECTOR PIPE (2.7L)

The exhaust system on the 2.0L/2.4L engine models consists of a front mounted catalytic converter, resonator/pipe assembly, muffler/pipe assembly, band clamps and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.

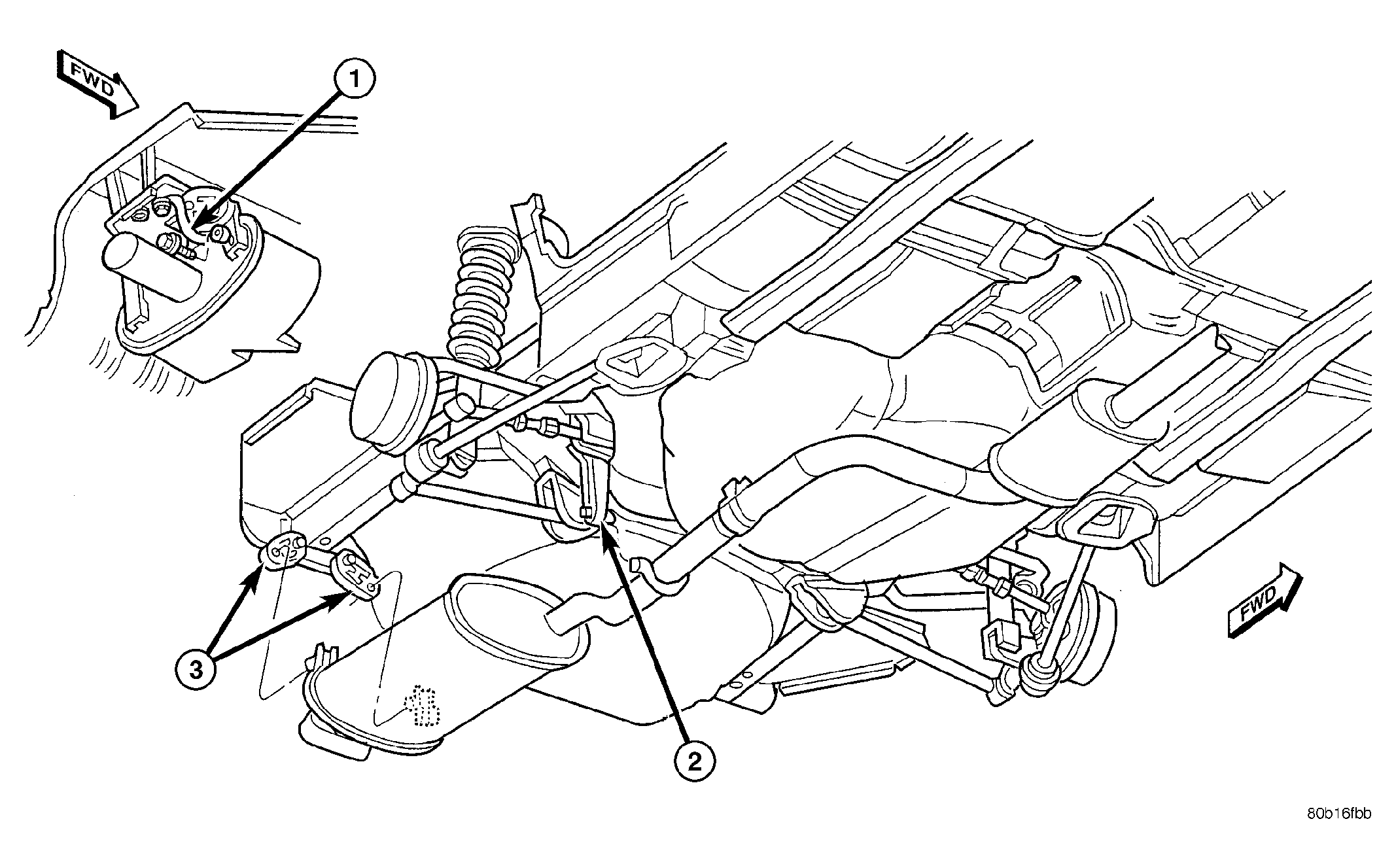

Fig 2: Identifying Exhaust System Supports

Courtesy of CHRYSLER LLC

1 - GROUND STRAP

2 - MUFFLER/FRONT PIPE SUPPORT ISOLATOR

3 - REAR MUFFLER SUPPORT ISOLATORS

The exhaust system on the 2.7L engine model consists of front and rear bank catalytic converters, cross-under pipe, connector pipe, resonator/pipe assembly, muffler/pipe assembly, band clamps and support isolators. The upstream oxygen sensors are located in the front and rear exhaust manifolds. The downstream oxygen sensors are located in the cross-under pipe.

Resonators, mufflers and exhaust pipes are tuned to each powertrain combination.
