Ambient Temp Sensor

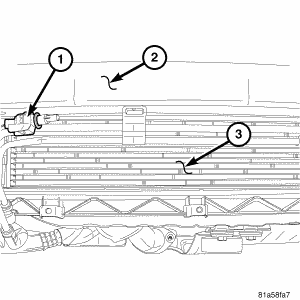

Fig 1: Locating Ambient Temperature sensor
GC0059042Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Working through the opening in the right side of the front fascia, disconnect the wire harness connector from the ambient temperature sensor (1).
  3. Remove the fastener that secures the ambient temperature sensor to the power steering line bracket.
  4. Remove the ambient temperature sensor from the vehicle.
