Ambient Temp Sensor

Fig 1: Locating Ambient Temperature sensor

Courtesy of CHRYSLER LLC

The ambient temperature sensor (1) is a variable resistor located under the bottom right side of the front bumper reinforcement (2). The sensor is attached to the power steering line bracket with a pushpin style retainer and can be accessed through the right opening in the front fascia assembly.

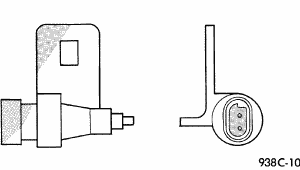

Fig 2: View Of Ambient Temperature sensor

Courtesy of CHRYSLER LLC

The ambient temperature sensor cannot be adjusted or repaired and, if inoperative or damaged, must be replaced.
