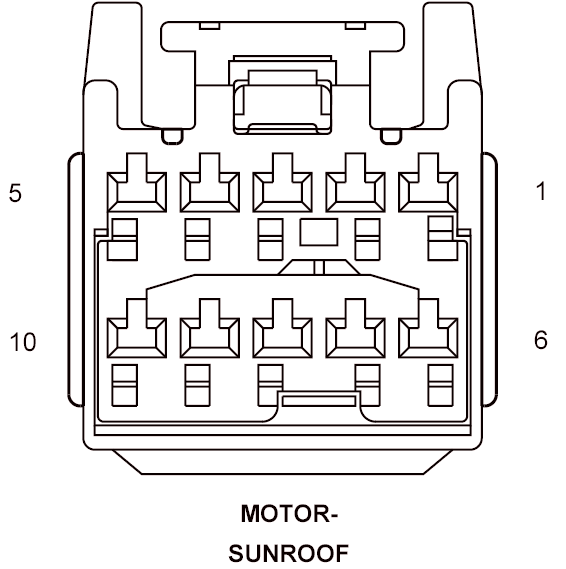

Sunroof Motor Connector End View
MOTOR-SUNROOF - 10-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z907 16BK | GROUND |
| 2 | Q6 16OR/LG | SUNROOF SWITCH SUPPLY |
| 3 | F996 20PK/DG | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 4 | Q4 16OR/YL | SUNROOF VENT SWITCH SENSE |
| 5 | Q3 16OR/TN | SUNROOF OPEN SWITCH SENSE |
| 6 | A927 16RD/WT | FUSED B(+) |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | Q5 16OR/LB | SUNROOF CLOSE SWITCH SENSE |
