Right Rear Window Motor Connector End View

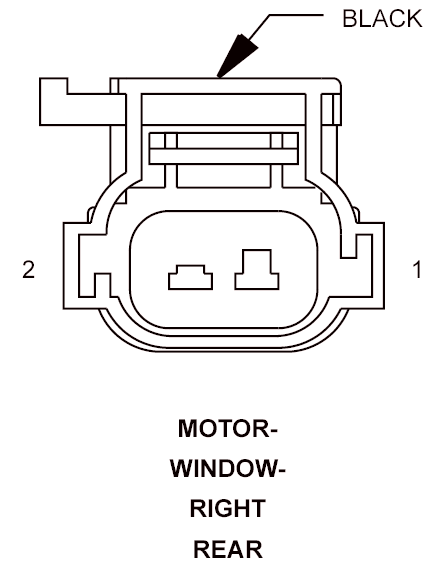

Right Rear Window Motor Connector End View
MOTOR-WINDOW-RIGHT REAR - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q212 14TN/LB
RIGHT REAR WINDOW DRIVER (DOWN)
2
Q112 14TN/YL
RIGHT REAR WINDOW DRIVER (UP)
Courtesy of CHRYSLER CORP.
