Right Front Fog Lamp Connector End View

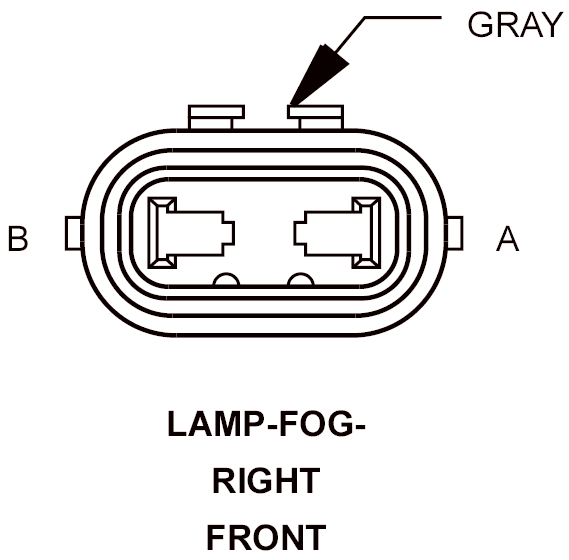

LAMP-FOG-RIGHT FRONT - GRAY 2-WAY

GJS780163Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L90 18WT/OR FRONT FOG LAMP CONTROL OUTPUT
B Z920 18BK GROUND
