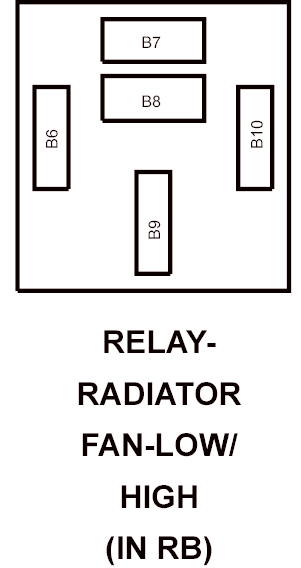

Radiator Fan Low/High Relay Connector End View
RELAY-RADIATOR FAN-LOW/HIGH
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| B6 |
A935 20RD |
FUSED B(+) |
| B6 |
A935 20RD |
FUSED B(+) |
| B7 |
N23 10DB |
LOW/HIGH RAD FAN RELAY OUTPUT |
| B8 |
- |
- |
| B9 |
A16 10RD/BR |
FUSED B(+) |
| B10 |
N201 20DB/LG |
LOW/HIGH RAD FAN RELAY CONTROL |
