Left Rear Window Motor Connector End View

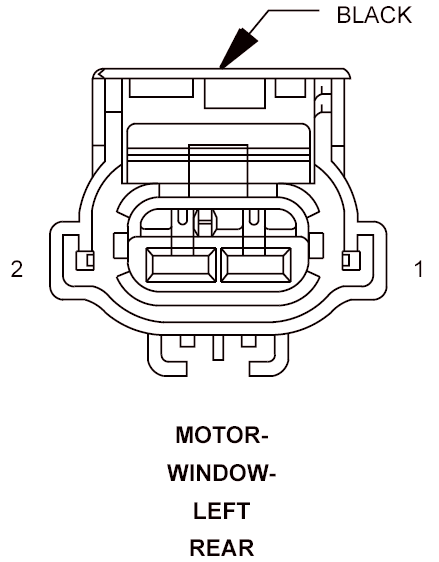

MOTOR-WINDOW-LEFT REAR - BLACK 2-WAY

GJS780255Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)
2 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)
