Left License Lamp Connector End View

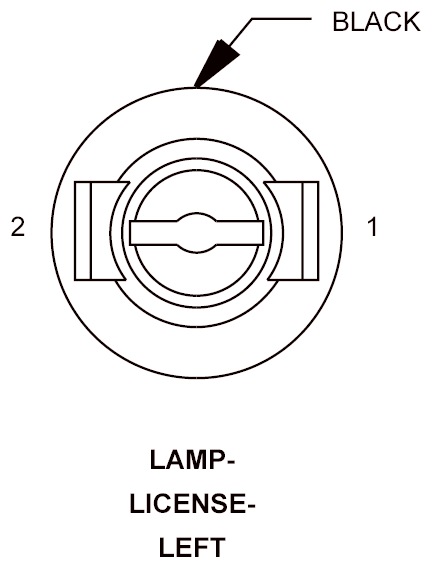

LAMP-LICENSE-LEFT - BLACK 2-WAY

GJS780169Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L217 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z916 20BK GROUND
