Knock Sensor (Gas) Connector End View

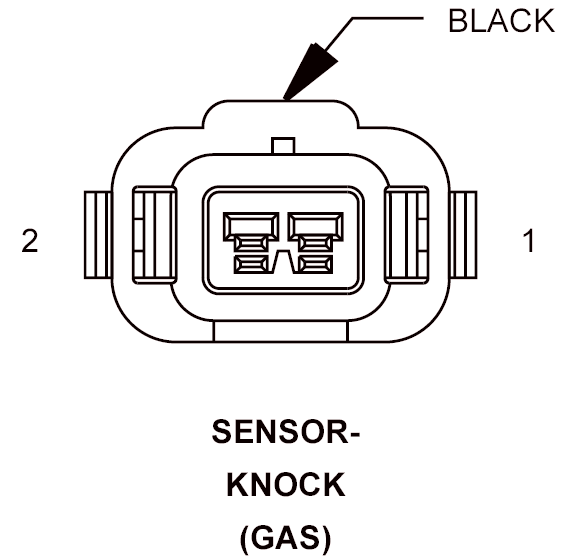

SENSOR-KNOCK - BLACK 2-WAY (GAS)

GJS780298Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K42 20DB/YL KS SIGNAL
2 K942 20WT/BR KS RETURN
