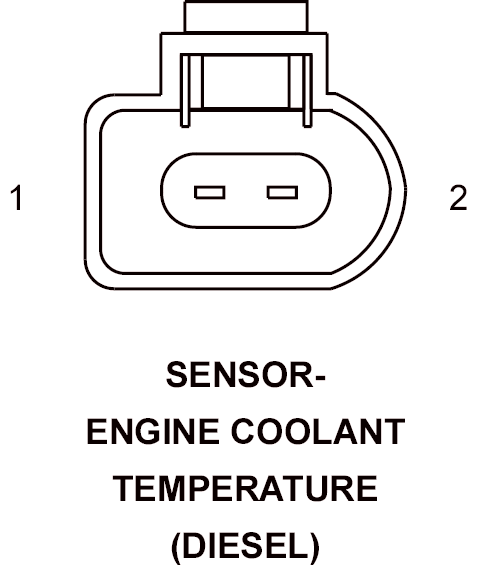

Engine Coolant Temperature Sensor (Diesel) Connector End View

SENSOR-ENGINE COOLANT TEMPERATURE - 2-WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K2 20VT/OR	ECT SIGNAL
2	K915 20BR/WT	SENSOR GROUND
