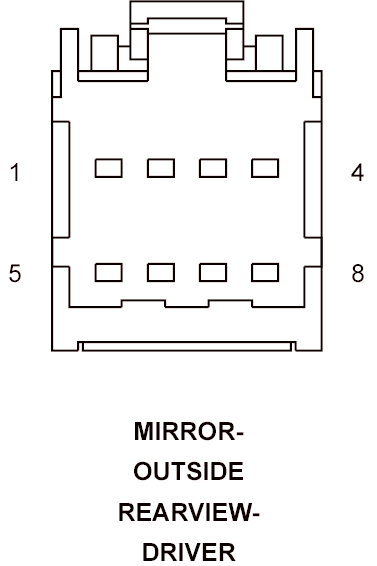

Driver Outside Rearview Mirror Connector End View
MIRROR-OUTSIDE REARVIEW-DRIVER - 8-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P71 20TN/DG |
DRIVER MIRROR VERTICAL DRIVER |
| 2 |
P76 20TN |
MIRROR COMMON DRIVER |
| 3 |
P75 20TN/LG |
DRIVER MIRROR HORIZONTAL DRIVER |
| 4 |
C16 20DB/GY |
FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT |
| 5 |
Z908 20BK |
GROUND |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
