Decklid Release Switch Connector End View

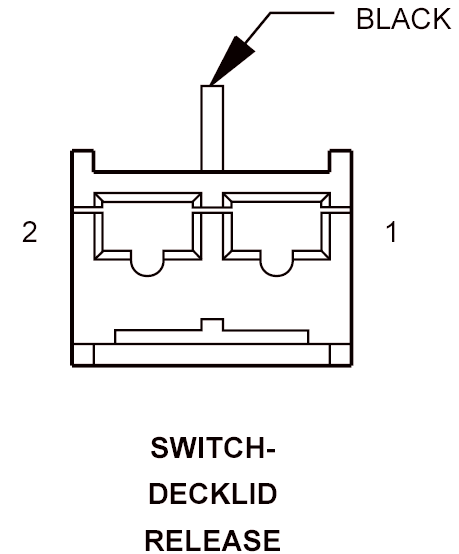

SWITCH-DECKLID RELEASE - BLACK 2-WAY

GJS780344Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z910 20BK GROUND
2 P223 20LG/WT DECKLID RELEASE SWITCH SENSE
