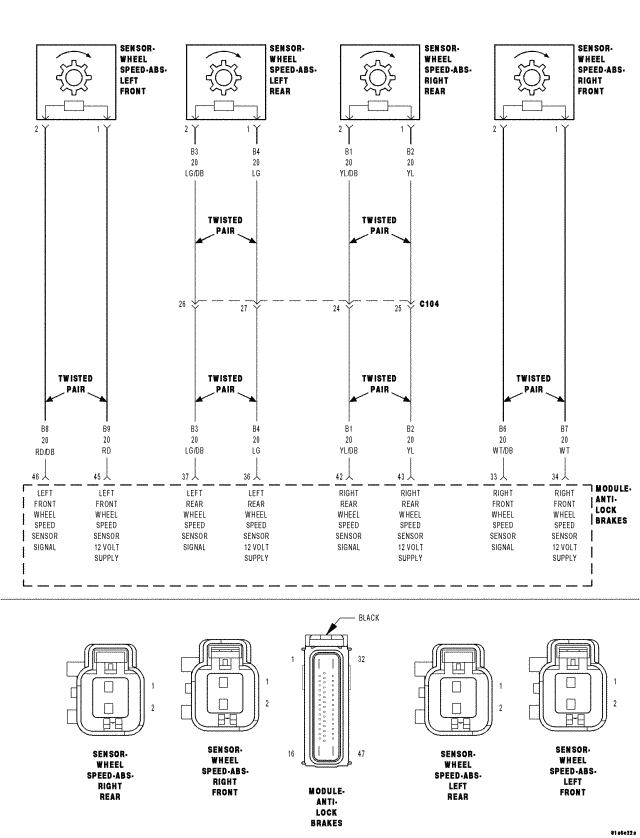

Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Electrical Diagnostics >> DTC Troubleshooting >> C1038-Rear Wheel Speed Sensor Circuit Low >> Circuit Schematic
