Engine Control Module (ECM)

Fig 1: Identifying Air Inlet Duct
GC0058937Courtesy of CHRYSLER LLC
  1. Remove air inlet duct (3).
  2. Disconnect negative battery cable.
  3. Disconnect vacuum hose (1).
  4. Remove air filter housing assembly (2). Refer to appropriate Engine SERVICE INFORMATION article.

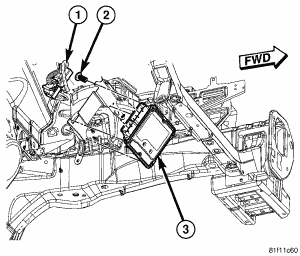

    Fig 2: Identifying 2.0L Diesel ECM
    GC0058936Courtesy of CHRYSLER LLC
  5. Disconnect both ECM (1) electrical connectors.
  6. Remove ECM bracket retaining bolts (2) and remove ECM (3).
