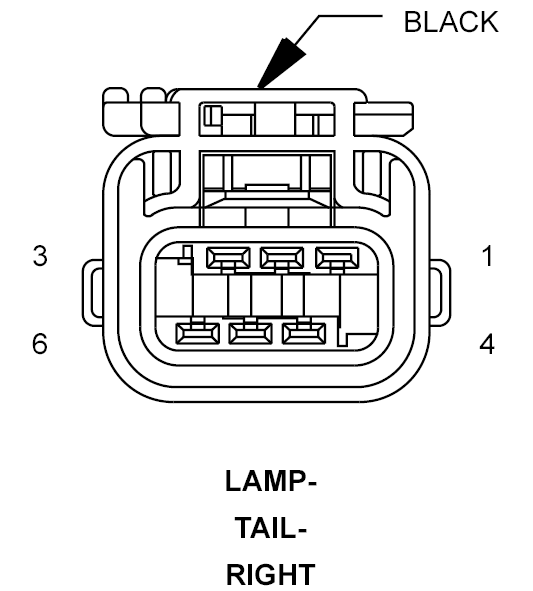

Right Tail Lamp Connector End View
LAMP-TAIL-RIGHT - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L72 20WT/OR |
RIGHT TAIL LAMP DRIVER |
| 2 |
L1 18WT/LG |
BACKUP LAMP DRIVER |
| 3 |
L72 20WT/OR |
RIGHT TAIL LAMP DRIVER |
| 4 |
Z362 18BK/BR |
GROUND |
| 5 |
L51 18WT/DG |
BRAKE LAMP SWITCH OUTPUT |
| 6 |
L62 18WT/DB |
RIGHT REAR TURN SIGNAL LAMP DRIVER |
