Circuit Schematic

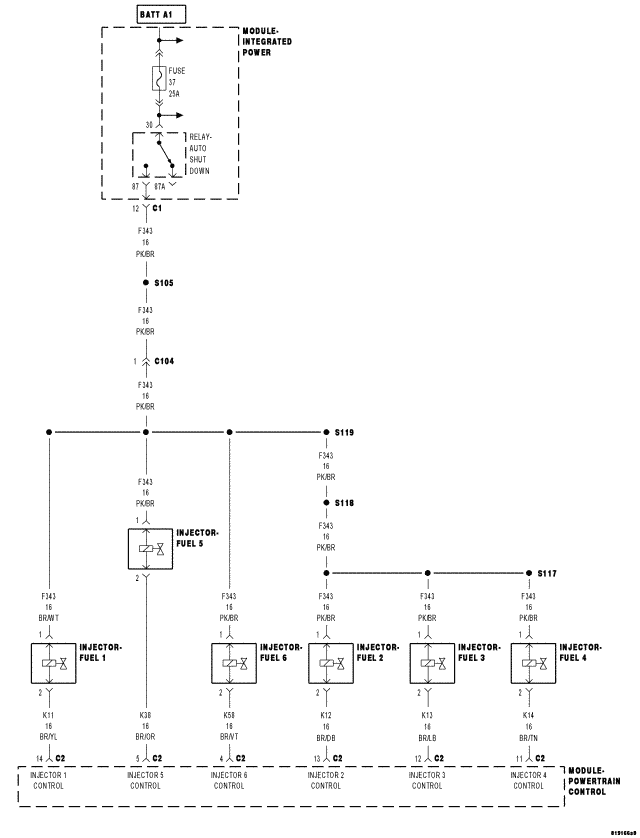

Fig 1: Fuel Injector Circuit Schematic - 4.0L

GC0049488

Courtesy of CHRYSLER LLC
