Standard Procedure: Cooling-Draining

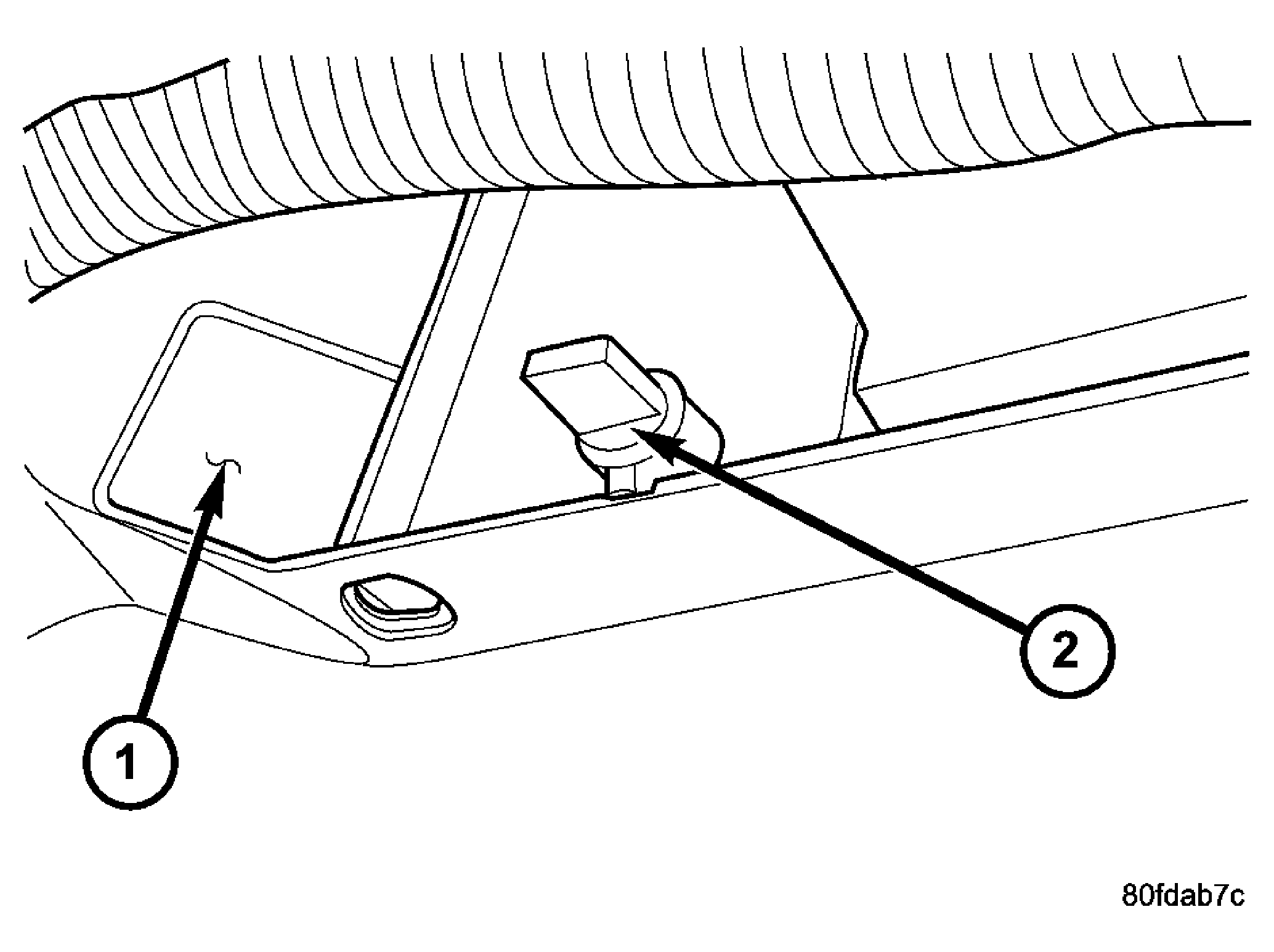

Fig 1: Draincock Location

Courtesy of CHRYSLER LLC

1 - LEFT SIDE FRAME RAIL

2 - DRAINCOCK

WARNING: Do not remove or loosen the coolant pressure cap, cylinder block drain plugs, or the draincock when the system is hot and under pressure because serious burns from the coolant can occur.

1. Without removing pressure cap and with system not under pressure  , open the draincock. The draincock is located on the lower left side of radiator.
2. After the coolant pressure container is empty, then remove coolant pressure cap.
3. Remove the cylinder block drain plug(s).
