Fuel Tank

  1. Support the fuel tank with a transmission jack.
  2. Raise fuel tank and install to vehicle.
    Fig 1: Fuel Tank Straps
    GC0000431Courtesy of CHRYSLER LLC
  3. Install the 2 fuel tank straps.
    Fig 2: Filler Tube to Rubber Hose
    GC0000426Courtesy of CHRYSLER LLC
  4. Install the fuel filler tube to the rubber hose at fuel tank.
    Fig 3: Fuel Tank Vapor Recirculation Tube
    GC0000422Courtesy of CHRYSLER LLC
  5. Connect the vapor recirculation tube.
    Fig 4: Fuel Supply Line and EVAP Lines
    GC0000427Courtesy of CHRYSLER LLC
    1 - EVAP Line
    2 - Fuel Line
  6. Connect the fuel line and EVAP line.
    Fig 5: Fuel Tank Electrical Connector
    GC0000421Courtesy of CHRYSLER LLC
  7. Connect the fuel tank electrical connector.
  8. Support driveshaft on jack.
  9. Install the driveshaft support/bearing.
    Fig 6: Driveshaft Rear Connection
    GC0000380Courtesy of CHRYSLER LLC
  10. Align the Marks on the driveshaft to the rear connection.
  11. Connect the driveshaft rear connection.

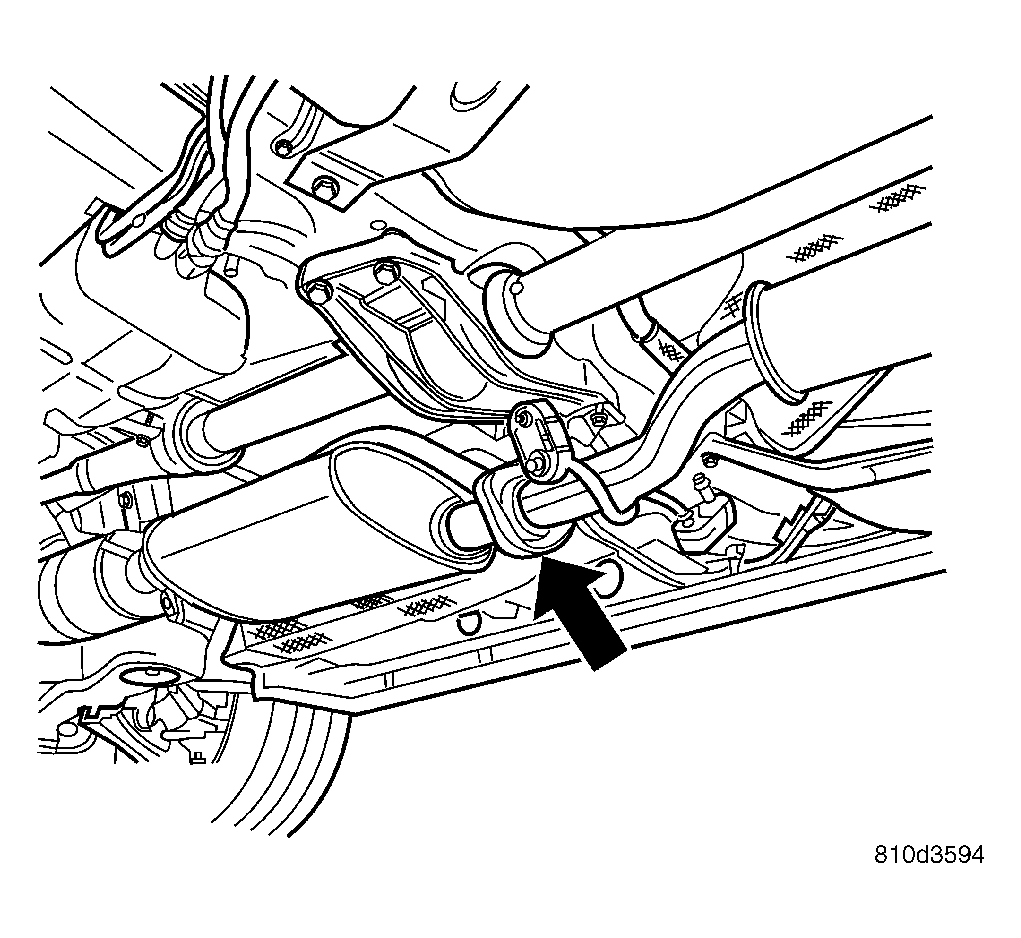

    Fig 7: Exhaust System Mid Flange
    GC0000430Courtesy of CHRYSLER LLC
  12. Install the exhaust system and tighten clamp.
    Fig 8: Exhaust Hanger Removed
    GC0000423Courtesy of CHRYSLER LLC
  13. Install the center exhaust hanger rubber grommets.
  14. Install muffler hanger rubber grommets.
    Fig 9: Muffler Hanger
    GC0000420Courtesy of CHRYSLER LLC
  15. Install the left rear tire.
  16. Lower vehicle.
  17. Connect the negative battery cable.
  18. Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
