Muffler And Resonator-Installation

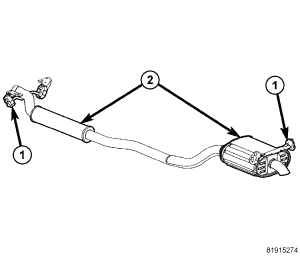

Fig 1: Muffler/Resonator Assembly

Courtesy of CHRYSLER LLC

1 - MUFFLER AND RESONATOR ASSEMBLY

2 - INSULATORS

Install the insulators (2).

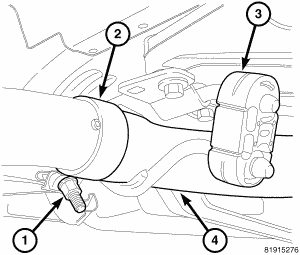

Fig 2: Muffler And Resonator Components

Courtesy of CHRYSLER LLC

1 - NUT

2 - BAND CLAMP

3 - INSULATOR

4 - RESONATOR AND MUFFLER ASSEMBLY

Position band clamp (2) on the muffler and resonator assembly (4).
Tighten band clamp nut (1) to 54 N.m (40 ft. lbs.).
Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
