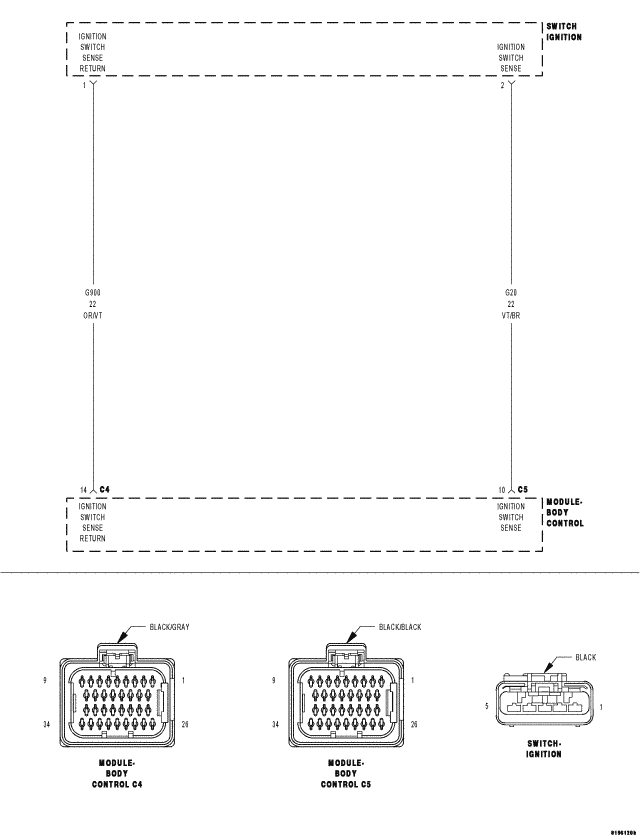

Home >> Chrysler >> 2007 >> Pacifica Limited, AWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Control - Electrical Diagnostics >> Ignition Control-Electrical Diagnostics >> DTC Troubleshooting >> B2109-Ignition Switch Sense Input Circuit High >> Circuit Schematic
